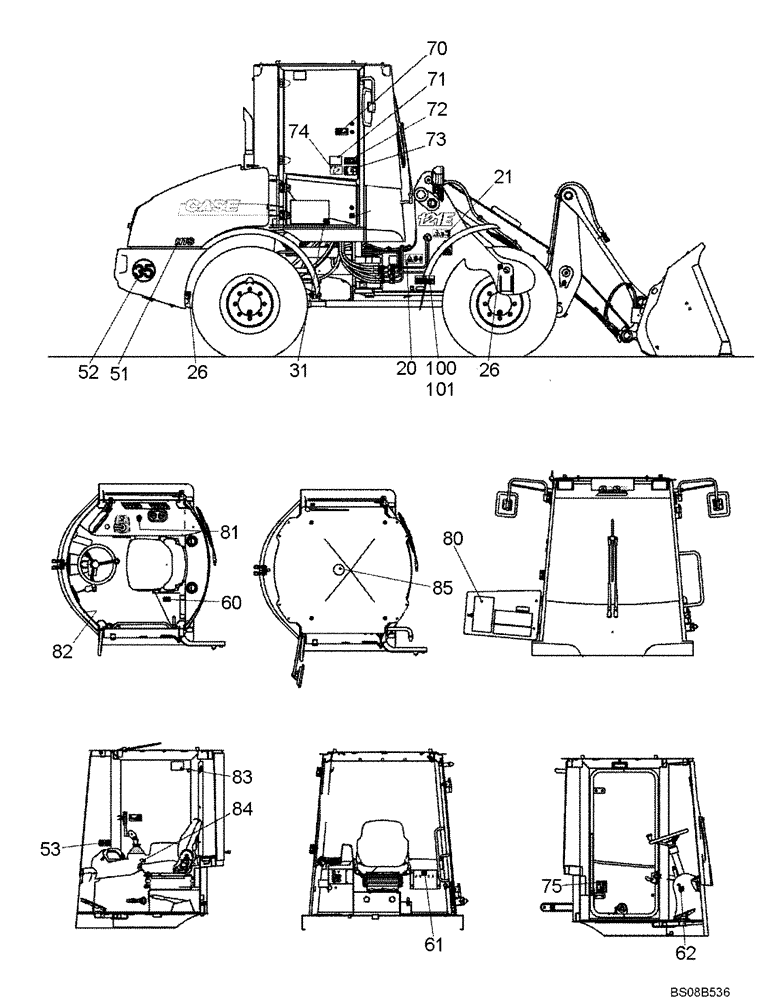

Запчасти Case 121E (91.017[6559864000]) - DECALS CASE (EUROPE) HTS LOCATION 2 OF 2 (90) - PLATFORM, CAB, BODYWORK AND DECALS

15

4574425

DECAL

Case Logo

1шт.

20

4572103

IDEOGRAM

Stay Break Area

2шт.

21

4572101

DANGER DECAL

Stay Danger Front

2шт.

22

4572111

DECAL

Fuel

1шт.

23

4575031

IDEOGRAM

Pin Drawbar

1шт.

24

4572102

IDEOGRAM

Stay Danger Rear

1шт.

25

4572341

IDEOGRAM

Engine Stasis

1шт.

26

1288796

DECAL

Fixing Point Rigging

4шт.

27

8603095

WARNING DECAL

Etheriso Eu

1шт.

28

4572112

DECAL

Windshield Washing Water

1шт.

29

4572106

DECAL

Battery Main Switch

1шт.

30

4572504

IDEOGRAM

Fuse Box

1шт.

31

4575034

IDEOGRAM

Fresh Air Filter

1шт.

32

6559337

DECAL

Attachments Europe

1шт.

33

4572502

DECAL

Carry Position Bucket

1шт.

51

4576764

DECAL

HTS

2шт.

52

4577700

DECAL

35 KM/H

3шт.

53

4554602

DECAL

MAX. 35 KM/H

1шт.

60

4572503

IDEOGRAM

Parking Brake Loosen

1шт.

61

4575032

IDEOGRAM

Manual

1шт.

62

4574997

IDEOGRAM

Adjust Steering Column

1шт.

70

4552877

PLATE

1шт.

71

6559984

DECAL

Loading Capacitiy

1шт.

72

3016648

IDEOGRAM

Instruction Manual

1шт.

73

4572108

DECAL

Instruction Joystick

1шт.

74

4576974

DECAL

Instruction Plate Joystick

1шт.

75

6559992

DECAL

1шт.

80

3805219

DECAL

Fuse/Relay See Fig 91.009

1шт.

81

4577348

DECAL

1шт.

82

1482596

PLATE

1шт.

83

3805234

DECAL

1шт.

84

3805201

DECAL

1шт.

85

1482597

PLATE

1шт.

100

NS

NOT SERVICED

Idenification Plate Case Euro on-Road

1шт.

101

72761

RIVET

4шт.
