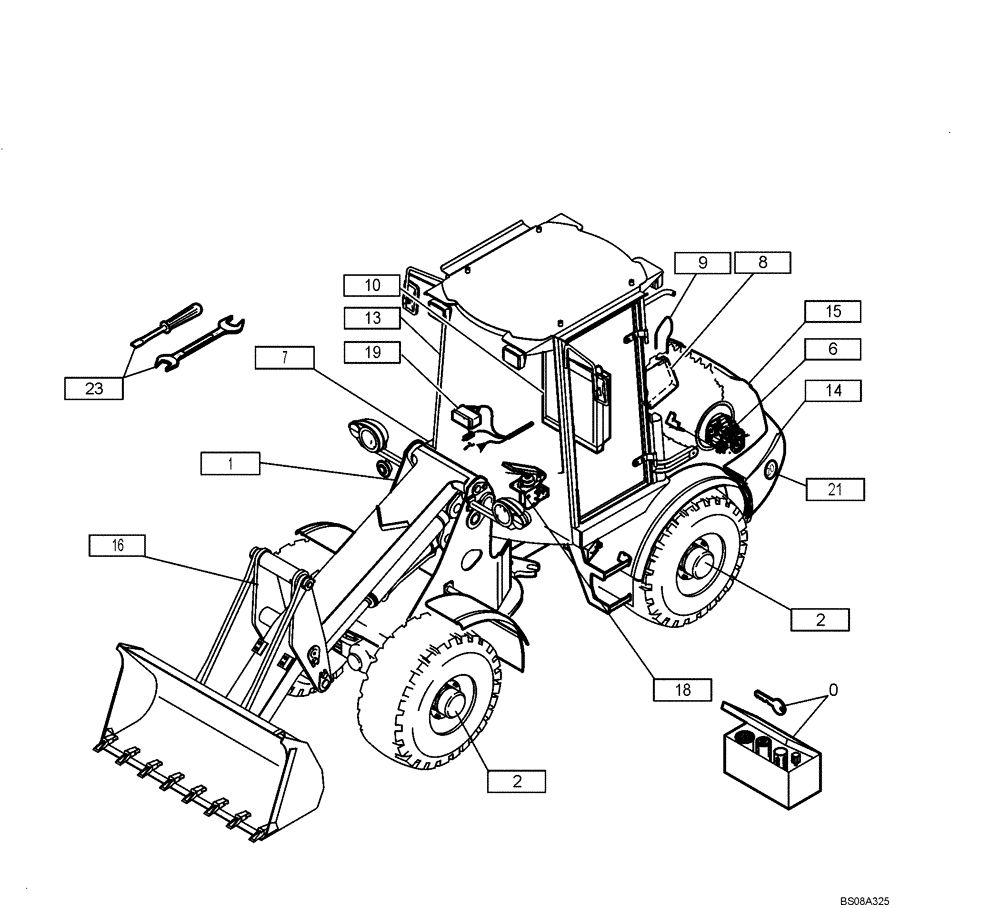

Запчасти Case 121E (00.100[2990909001]) - BASIC MACHINE 121E MONOBOOM (00) - GENERAL & PICTORIAL INDEX

1

Frame Basic Machine with Mounting Parts, (4554066) See Fig 01.100

1шт.

6

Motor Mounting Parts,(4554437) See Fig 13.011

1шт.

7

Fuel System,(4554073) See Fig 13.300

1шт.

8

Cover 'V'-BELT, (4552164) See Fig 36.560

1шт.

9

Exhaust System Installation Material, (4552063) See Fig 13.220

1шт.

10

Cooling System Engine Oil Installation Material, (4552057) See Fig 15.120

1шт.

11

Motor Guard Plate Jump Start, (4552792) See Fig 13.003

1шт.

13

Cab Module Installation Material, (4552280) See Fig 34.010

1шт.

14

Ballast Installation Material, (4573410) See Fig 12.010

1шт.

15

Engine Hood Installation Material, (4552124) See Fig 36.020

1шт.

16

Mast Monoboom Installation Material, (4554781) See Fig 60.600

1шт.

18

Hydraulic System Basic Machine, (4554077) See Fig 20.010

1шт.

19

Electrical System Basic Machine Complete, (6559904) See Fig 32.010

1шт.

21

Decals, See Figs 91.000

1шт.

23

Tool Set, (6559837) See Fig 92.010

1шт.
