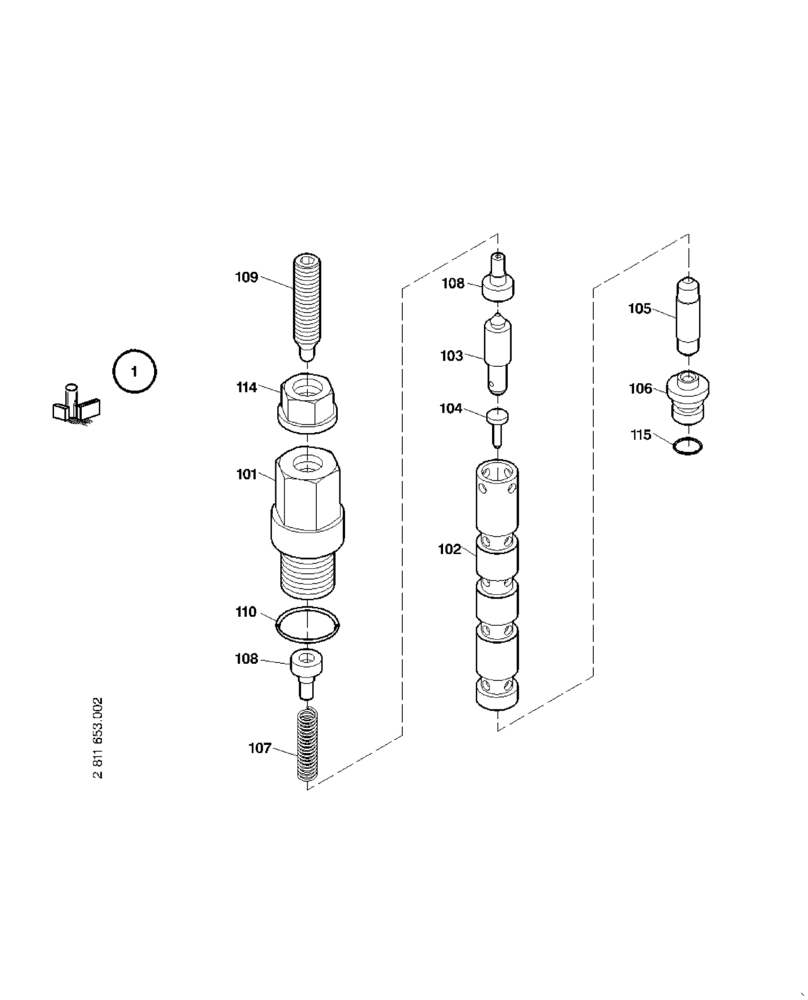

Запчасти Case 121E (23.192[2811653000]) - SWITCH-OVER VALVE (35) - HYDRAULIC SYSTEMS

1

8486163

SHUT-OFF VALVE

Replaces 421749A1

1шт.

101

1456652

PLUG

Replaces 420631A1

1шт.

102

1456653

PLUNGER AND VALVE

Replaces 421750A1

1шт.

103

1456654

PISTON

Replaces 420633A1

1шт.

104

1452857

PISTON

Replaces 420634A1

1шт.

105

1452858

PLUNGER

Replaces 420635A1

1шт.

106

1464766

VALVE SEAT

Replaces 420636A1

1шт.

107

8487544

SPRING

Replaces 420637A1

1шт.

108

1456656

SPRING SEAT

Replaces 420638A1

2шт.

109

1452862

SET SCREW

Replaces 420639A1

1шт.

110

31112

O-RING

Replaces 420640A1

1шт.

114

8487655

NUT

Replaces 420619A1

1шт.

115

2976143

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

1шт.
