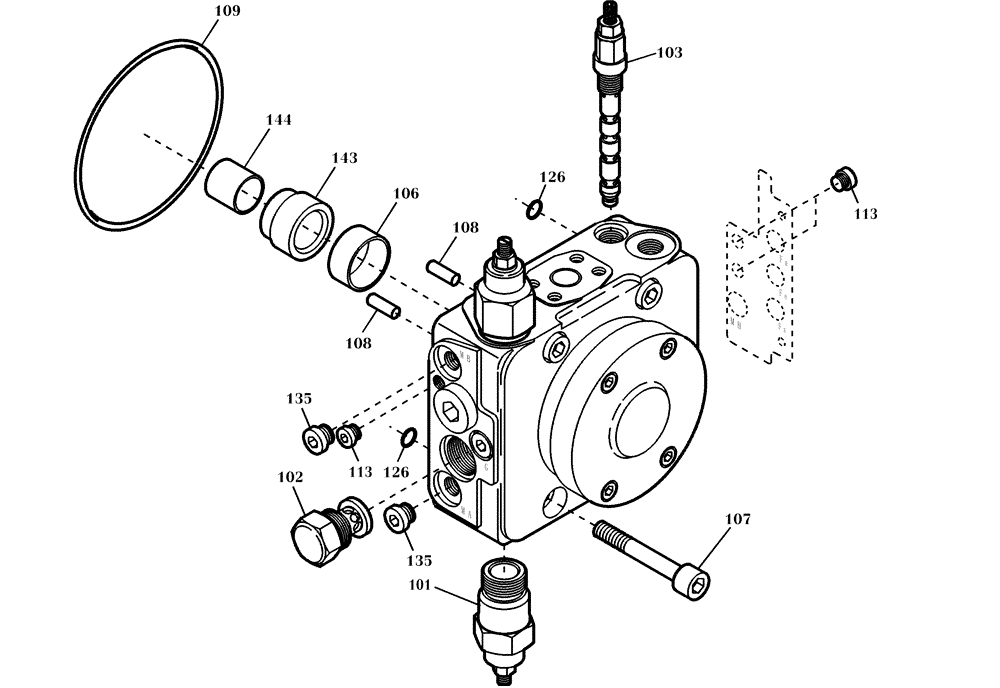

Запчасти Case 121E (22.430[2812202000]) - DISTRIBUTOR PLATE PUMP INSTALLATION (35) - HYDRAULIC SYSTEMS

1

1481987

JUNCTION BLOCK

Connecting Plate, Replaces 421748A1

1шт.

101

76609842

HYDRAULIC VALVE

Pressure Relief, See Fig 23.032, Replaces 420614A1

1шт.

102

8488269

VALVE PRESSURE RELIE

See Fig 23.033 Replaces 420621A1

1шт.

103

8486163

SHUT-OFF VALVE

See Fig 23.192, Replaces 421749A1

1шт.

107

1148138

SCREW

M14 x 80-12.9, Replaces 421752A1

4шт.

108

54279

PIN

Replaces 421753A1

2шт.

109

1456674

O-RING,139.97mm ID x 5.693" OD x 2.62mm

12V, Replaces 421754A1

1шт.

113

1403736

DRAIN PLUG,M8 x 1

Replaces 420646A1

3шт.

126

763075

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

9.25 x 1.78-NB90, Replaces 238-6012

2шт.

135

970659

PLUG,M12 x 1.5

M12 x 1.5, Replaces 420647A1

2шт.

143

1456672

BUSHING

Replaces 421755A1

1шт.

144

1456673

BUSHING

Replaces 421756A1

1шт.
