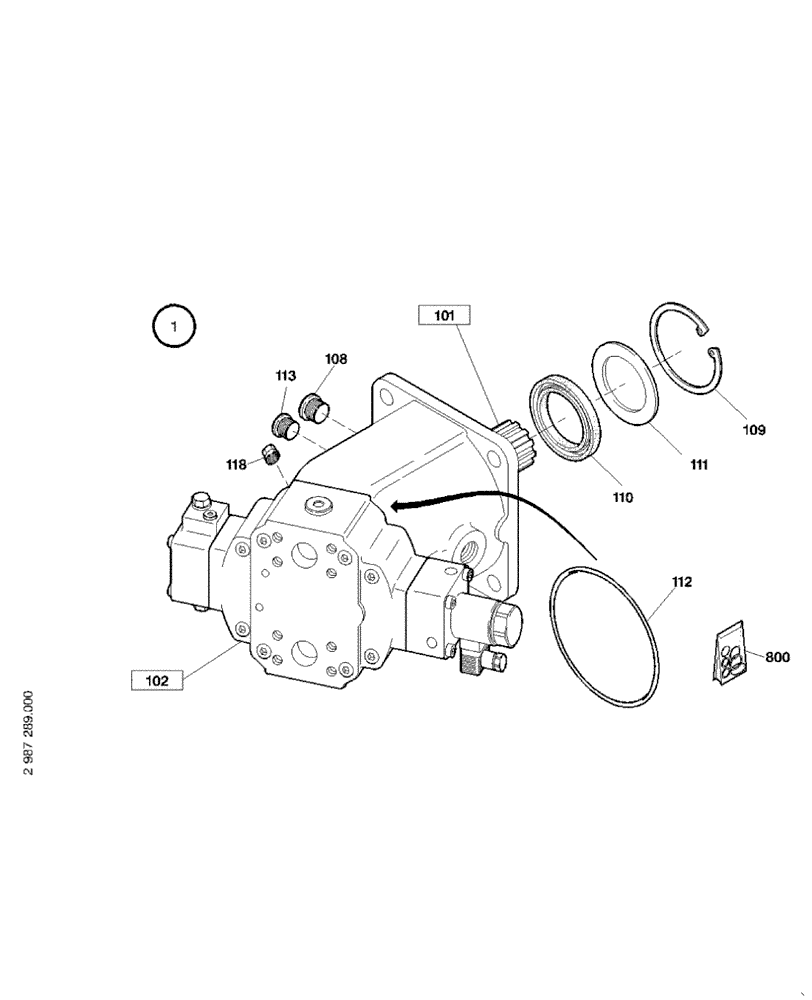

Запчасти Case 121E (22.120[2987289000]) - AXIAL PISTON MOTOR INSTALLATION STANDAED (35) - HYDRAULIC SYSTEMS

1

4550966

HYDRAULIC MOTOR

1шт.

101

Drive Device Hydraulic Motor, (2902030) See Fig 22.124

1шт.

102

Regulation Hydraulic Motor Control Unit, (2988372) See Fig 22.125

1шт.

108

1471538

PLUG,M18 x 1.5

1шт.

109

370018

SNAP RING,M72, Internal

1шт.

110

2894356

SEAL

1шт.

111

2979758

RING

1шт.

112

1445962

O-RING,0.139" Thk x 5.859" ID, -257, Cl 5, 75 Duro

1шт.

113

1471538

PLUG,M18 x 1.5

1шт.

118

1401644

NUT

1шт.

800

6907962

SEAL

1шт.
