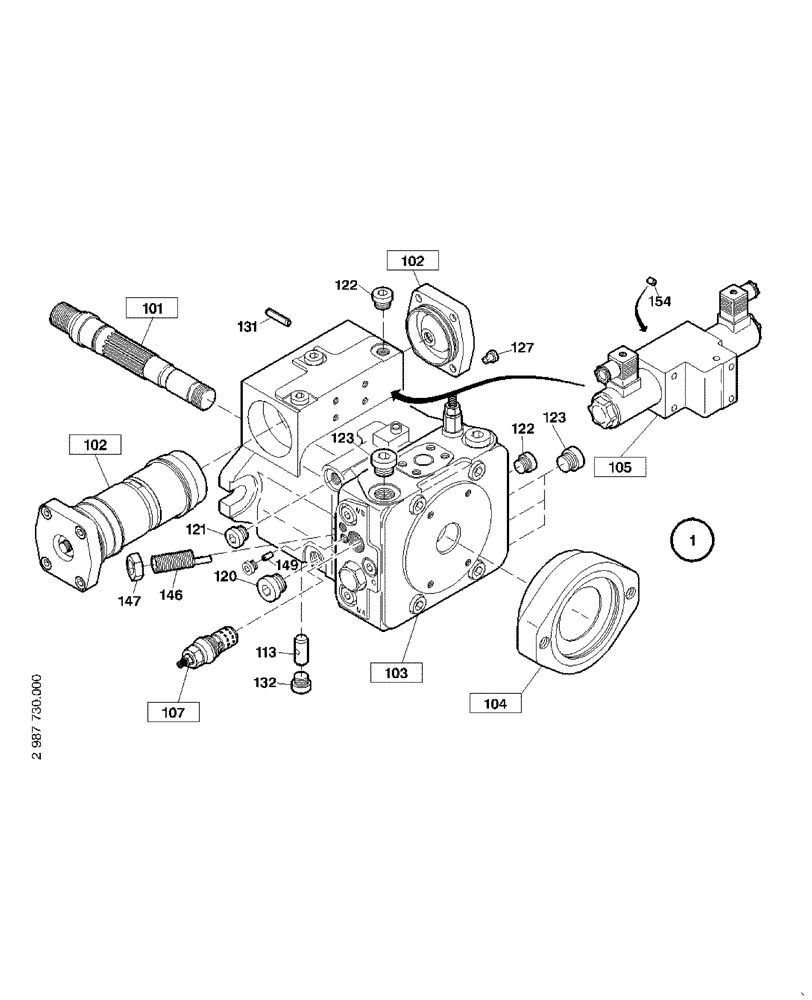

Запчасти Case 121E (22.062[2987731000]) - AXIAL PISTON PUMP (35) - HYDRAULIC SYSTEMS

1

4532229

PUMP

1шт.

101

Drive Device Pump (2988404) See Fig 22.064

1шт.

102

Regulation Pump (2812201) See Fig 22.066

1шт.

103

Distributor Plate Pump Insallation (2812202) See Fig 22.430

1шт.

104

Coupling/Clutch (2812203) See Fig 22.052

1шт.

105

Solenoid Valve (2988380) See Fig 23.010

1шт.

107

Valve Max Load Control (2811655) See Fig 23.110

1шт.

113

8486150

PIN

Replaces 421771A1

1шт.

120

945328

PLUG,Hex, M22 x 1.5

Screw M22 x 1.5, Replaces 420698A1

1шт.

121

773596

PLUG,Hex socket, M24 x 1

Screw M14 x Replaces 420699A1

2шт.

122

970659

PLUG,M12 x 1.5

Screw M12 x 1.5, Replaces 420647A1

4шт.

123

1412651

PLUG

Screw, Replaces 420700A1

4шт.

127

8486166

PLUG

Replaces 420431A1

2шт.

131

1469079

LOCK PIN

Replaces 420701A1

2шт.

132

1637351

PLUG,Hex Skt, M10 x 1 x 12mm

Screw M10 x 1, Replaces 420702A1

1шт.

146

1456679

SCREW

Replaces 420703A1

1шт.

147

1412648

NUT

Replaces 420704A1

1шт.

149

1425466

NEEDLE VALVE

Replaces 421772A1

1шт.

154

1418841

DIAPHRAGM

Replaces 4217731

1шт.
