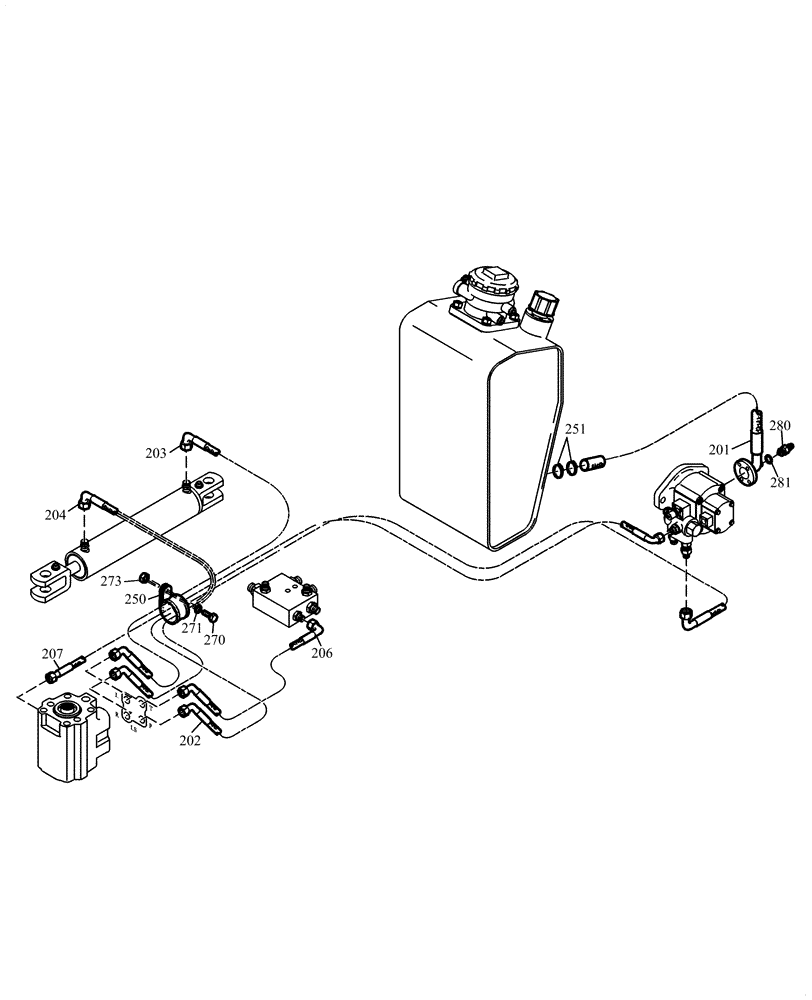

Запчасти Case 121E (20.530 [2991282000]) - HYDRAULIC SYSTEM STEERING MONOBOOM (35) - HYDRAULIC SYSTEMS

201

2813911

HYDRAULIC HOSE

M32 x 975

1шт.

202

4552902

HYDRAULIC HOSE

M10/12 x 2850

1шт.

203

4552340

HYDRAULIC HOSE

M12 x 770

1шт.

204

4507644

HYDRAULIC HOSE

M12 x 925

1шт.

206

2813913

HYDRAULIC HOSE

M12 x 515

1шт.

207

2813914

HYDRAULIC HOSE

M6 x 2440

1шт.

250

422182A1

CLAMP

RSGU 1. 60/25 NOR

1шт.

251

2979287

HOSE CLAMP

AS25-40-W2

2шт.

270

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

271

2981701

WASHER,10.5mm ID x 20mm OD x 2mm Thk

2шт.

273

100016

NUT,M10 x 1.5, Cl 8

1шт.

280

425841

TEMPERATURE SWITCH

Temperature Select, Replaces 422781A1

1шт.

281

54837

SEALING RING

SEALRING Replaces 422782A1

1шт.
