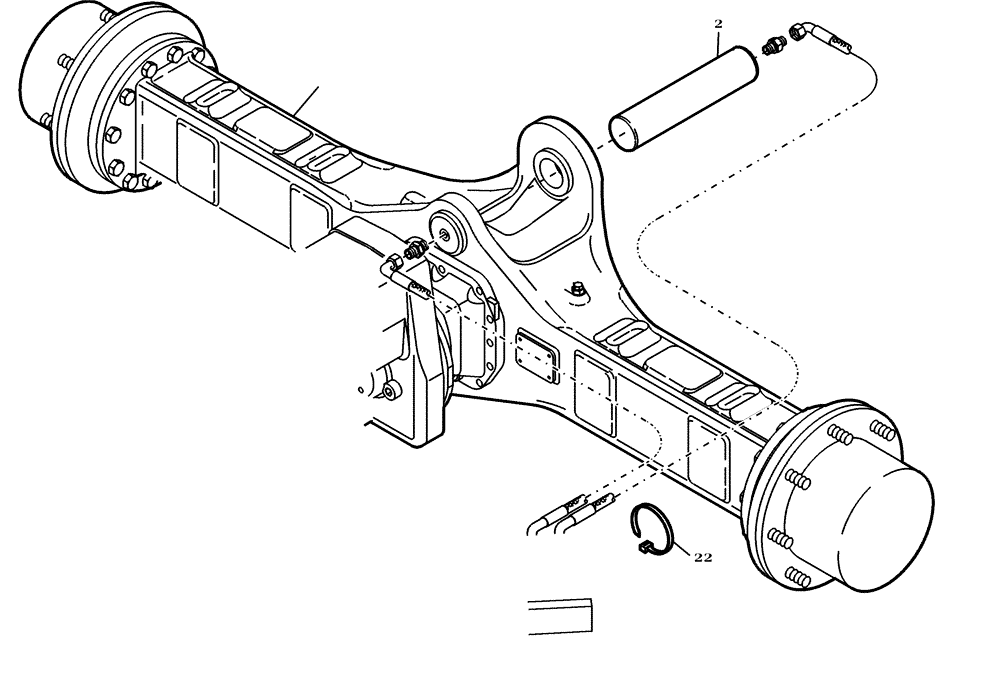

Запчасти Case 321D (02.023[2988913000]) - REAR AXLE INSTALLATION SELF-LOCKING (27) - REAR AXLE SYSTEM

1

Rear Axle Installation Self-Locking (4552440), See Fig 02.024

1шт.

2

2120409

PIN,50mm OD x 265mm L

Replaces 420375A1

1шт.

12

4505471

HYD CONNECTOR

Replaces 420382A1

2шт.

13

69810

NUT

M12 x 1.5, Replaces 420476A1

2шт.

14

84089942

LUBE NIPPLE

Replaces 38918

2шт.

17

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

1шт.

18

9706685

NUT,M12 x 1.75, Cl 8

Replaces 825-1412

1шт.

22

529070

CABLE TIE,368.3mm L

CABLE STRAP Replaces L11541

2шт.
