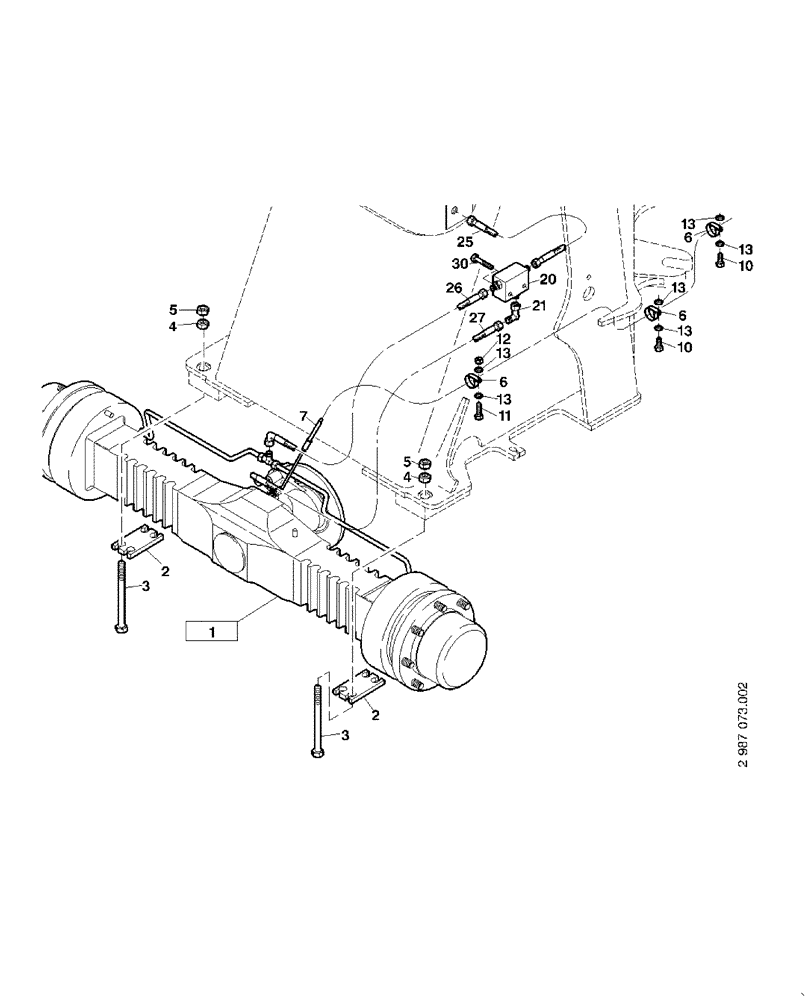

Запчасти Case 321D (02.110[2988851001]) - FRONT AXLE FAST GEAR (25) - FRONT AXLE SYSTEM

1

Front Axle Mounting Parts Fast Gear (4552446), See Fig 02.101

1шт.

2

2813834

PLATE

2шт.

3

1570100

BOLT,Hex, M20 x 280mm, Cl 8.8

8шт.

4

57136

NUT,M20, Cl 8

Replaces 825-1420

8шт.

5

725637

NUT,M20 x 2.5, Cl 8

8шт.

6

925564

HOSE CLAMP

3шт.

7

4552377

CABLE,2550mm L

Control

1шт.

10

7121462

BOLT,Hex, M8 x 14mm, Cl 8.8

2шт.

11

57013

BOLT,Hex, M8 x 20mm, Cl 8.8

Replaces 614-8020

1шт.

12

57126

NUT,Hex, M8, Cl 8

Replaces 43362

1шт.

13

2975165

WASHER

M8

6шт.

20

4552863

FLOW DIVIDER

1шт.

21

7723977

ELBOW

Replaces 421001A1

1шт.

25

4552866

HOSE,M6 x 600

1шт.

26

4552905

HOSE,M6 x 790

1шт.

27

4552906

HYDRAULIC HOSE,M6 x 770

1шт.

30

54387

BOLT,Hex, M6 x 30mm, Cl 8.8

Replaces 627-6030

2шт.
