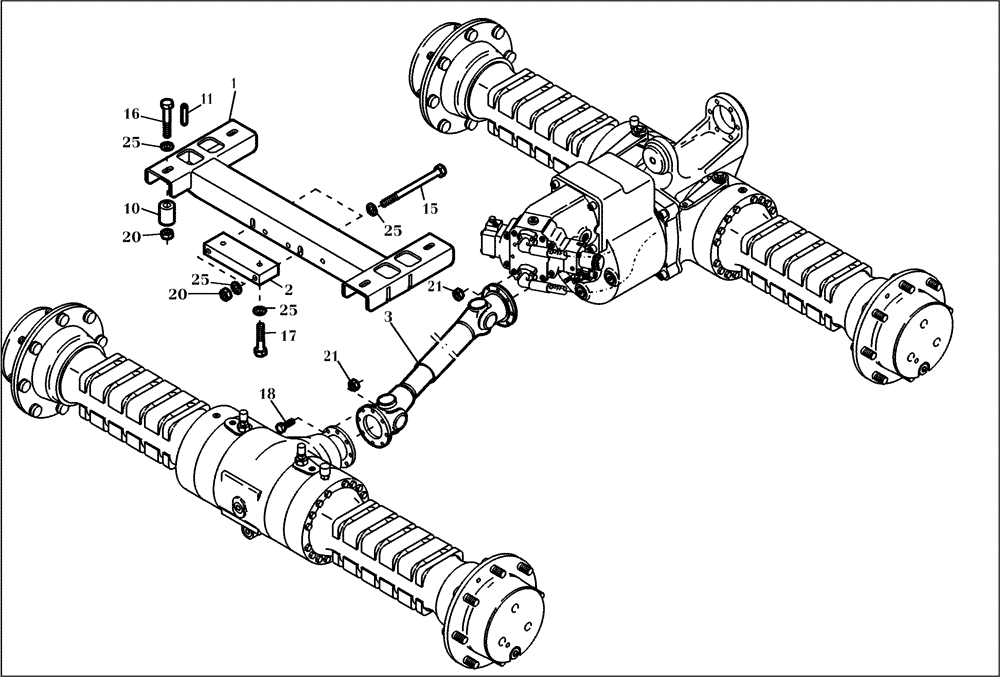

Запчасти Case 321D (07.011[2987604000]) - DRIVE SHAFT INSTALLTIONL FAST GEAR (14) - MAIN GEARBOX & DRIVE

1

2813605

SUPPORT

Replaces 424220A1

1шт.

2

2813624

BLOCK

Replaces 424221A1

1шт.

3

2813674

DRIVE SHAFT

(Components not serviced separately)

1шт.

10

570265

HYD CONNECTOR

Replaces 424289A1

4шт.

11

2929718

ROLL PIN

2шт.

15

1939940

BOLT,Hex, M12 x 110mm, Cl 10.9

Replaces 827-12110

2шт.

16

7120792

BOLT

M12 x 65, 10.9, Replaces 423549A1

4шт.

17

1637759

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9, Full Thd

2шт.

18

2975773

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9

8шт.

20

412672

NUT,Hex, M12 x 1.75, Cl 10

6шт.

21

9628098

NUT,M8 x 1.25, Cl 10

16шт.

25

2975473

WASHER,13mm ID x 30mm OD x 6mm Thk

10шт.
