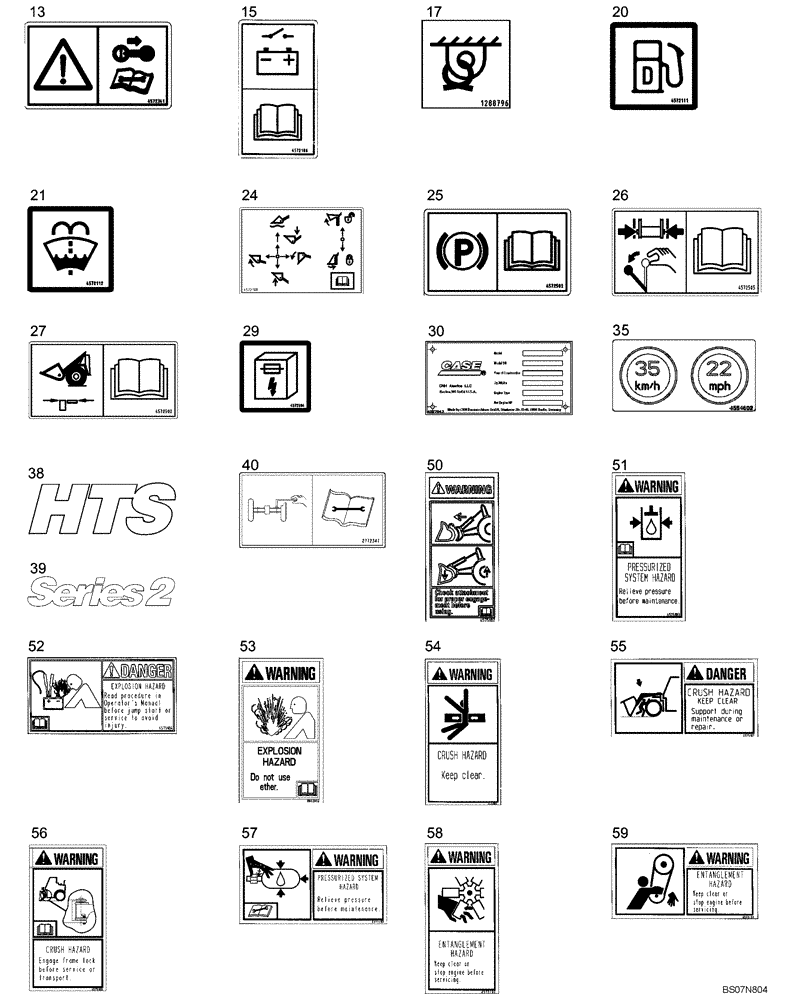

Запчасти Case 321D (91.022[2990424000]) - DECAL KIT (N.A.) 1 OF 2 (90) - PLATFORM, CAB, BODYWORK AND DECALS
![Схема запчастей Case 321D - (91.022[2990424000]) - DECAL KIT (N.A.) 1 OF 2 (90) - PLATFORM, CAB, BODYWORK AND DECALS](https://partsell.ru/storage/images/casece/413073.png)
№
Артикул
Название
Примечание
Количество
13
4572341
IDEOGRAM
Stop Engine
1шт.
15
4572106
DECAL
Battery Main Switch
1шт.
17
1288796
DECAL
Point Of Attachment
4шт.
20
4572111
DECAL
Fuel
1шт.
21
4572112
DECAL
Windshield Washing Water
1шт.
24
4572108
DECAL
Instruction lift, sink, ankippen, open
1шт.
25
4572503
IDEOGRAM
Hand Brake
1шт.
26
4572505
IDEOGRAM
Quick Change Pin
1шт.
27
4572502
DECAL
Carrier Position Shovel
1шт.
29
4572504
IDEOGRAM
Security Box
1шт.
30
NS
NOT SERVICED
Identification Plate Case
1шт.
31
72761
RIVET
4шт.
35
4554602
DECAL
1шт.
38
4576764
DECAL
1шт.
39
4552911
DECAL
Series 2
2шт.
40
2772347
IDEOGRAM
Axle Mount
1шт.
50
4575182
WARNING DECAL
Warning Check Attachment
1шт.
51
4575183
WARNING DECAL
Warning Pressurized System Hazard
1шт.
52
4575184
WARNING DECAL
Danger Explosion Hazard
1шт.
53
8603092
WARNING DECAL,55mm x 95mm H
Warning Ether
1шт.
54
4575186
WARNING DECAL
Warning Crush Hazard
2шт.
55
4575187
WARNING DECAL
Warning Crush Hazard Keep Clear Support
2шт.
56
4575188
WARNING DECAL
Warning Crush Hazard Engage Frame Lock Before Service
1шт.
57
4575189
DANGER DECAL
Warning Pressurized System Hazard
1шт.
58
4575190
WARNING DECAL
Warning Entanglement Hazard
1шт.
59
4575191
WARNING DECAL
Warning Entanglement Hazard
1шт.
60
4575192
WARNING DECAL
Danger Start Engine from Operators Seat
1шт.
62
4575194
WARNING DECAL
Warning Read Operators Manual
1шт.
64
4575196
WARNING DECAL
Warning Use Seat Belts
1шт.
65
4575197
DANGER DECAL
Danger, Runover Hazard
1шт.
67
4576974
DECAL
Joystick Instruction
1шт.
69
4574997
IDEOGRAM
Adjust Steering Column
1шт.
70
4575031
IDEOGRAM
Towing Pin
1шт.
71
4575032
IDEOGRAM
Handbook
1шт.
72
4575034
IDEOGRAM
Fresh Air Filter
1шт.
74
4575235
WARNING DECAL
Warning Crush Hazard, Keep Clear
2шт.
80
4552877
PLATE
Warning Broken Glass
1шт.
81
4552876
PLATE
50mm Series 2
1шт.
Выбрано товаров: 38
