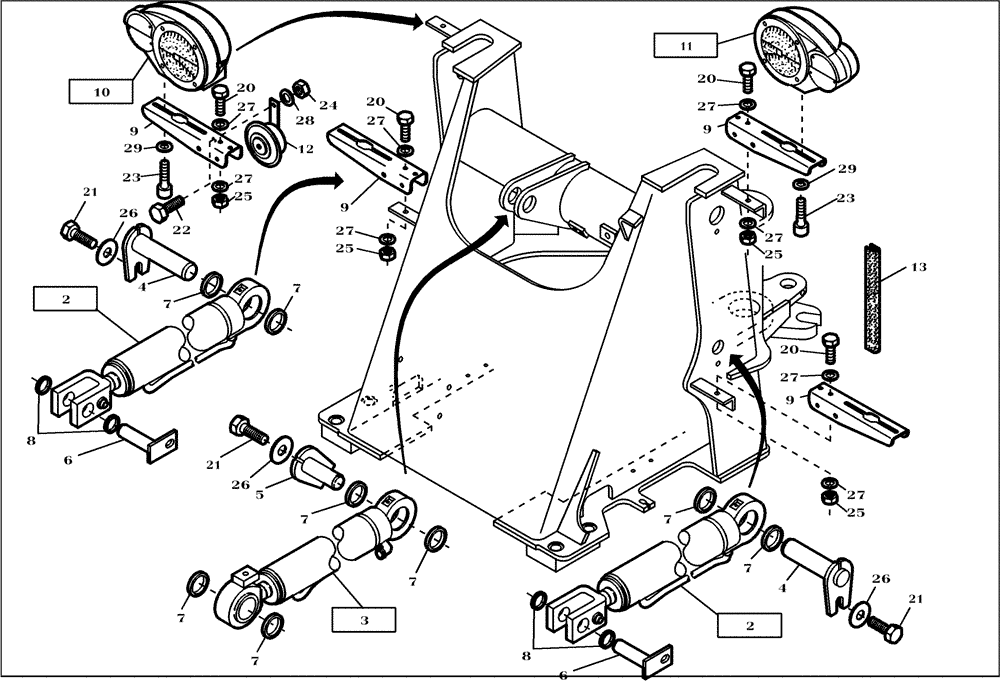

Запчасти Case 321D (01.400[2988602001]) - FRONT FRAME (39) - FRAMES AND BALLASTING

1

2813818

Front Frame Incl 2-29

1шт.

2

2813333

HYDRAULIC CYLINDER

Lift, See Fig 24.072

2шт.

3

2813337

HYDRAULIC CYLINDER

Tip, See Fig 24.082

1шт.

4

2813341

PIN

Replaces 423917A1

2шт.

5

2813345

PIN

Replaces 423918A1

1шт.

6

2813349

PIN

1шт.

7

1941219

SEALING RING

Replaces 422112A1

8шт.

8

1941206

SEALING RING

Replaces 422113A1

4шт.

9

2813704

BRACKET

Replaces 424281A1

4шт.

10

2929456

HEADLAMP,12V, 21W, Amber/Red

RH, See Fig 32.201

1шт.

11

2929455

HEADLAMP

LH, See Fig 32.202

1шт.

12

216547

HORN

Replaces 424282A1

1шт.

13

82848715

GUARD

0.85 Meter, Replaces 420196A1

1шт.

20

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

Replaces 614-8020

8шт.

21

300383

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

3шт.

22

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

Replaces 614-10020

1шт.

23

424283A1

SCREW

Hex Soc, M8 x 12 Full, 8.8 ZND

4шт.

24

100016

NUT,M10 x 1.5, Cl 8

1шт.

25

43362

NUT,M8 x 1.25, Cl 10

8шт.

26

530811

WASHER

Replaces 420197A1

3шт.

27

2975165

WASHER

M8

8шт.

28

2981701

WASHER,10.5mm ID x 20mm OD x 2mm Thk

1шт.

29

62543

WASHER

4шт.
