Запчасти Case 321D (22.430[2811920000]) - DISTRIBUTOR PLATE PUMP INSTALLATION (35) - HYDRAULIC SYSTEMS

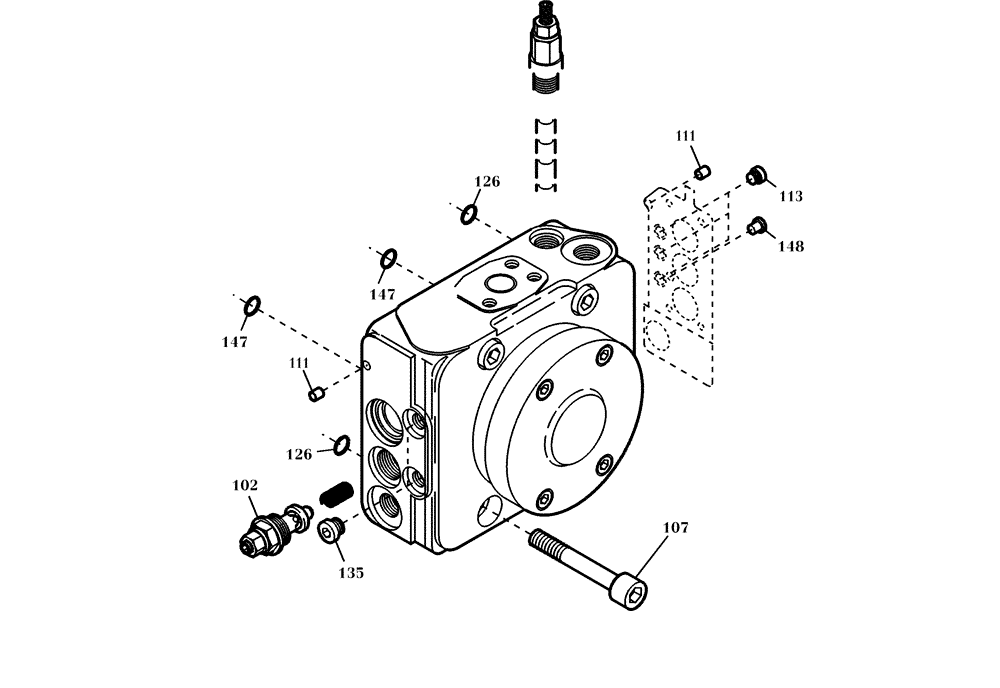

Схема запчастей Case 321D - (22.430[2811920000]) - DISTRIBUTOR PLATE PUMP INSTALLATION (35) - HYDRAULIC SYSTEMS
147
107
113
126
148
111
147
126
111
102
135

Артикул

Название

Примечание

Количество

1

8487249

HYDRAULIC VALVE

CONNECTING PLATE, Replaces 422340A1

1шт.

101

Press.Rel.Valve (2941917) See Fig 23.032

2шт.

102

Press.Rel.Valve (2295041) See Fig 23.033

1шт.

103

Switch-Over Valve (2295043) See Fig 23.192

1шт.

106

1464770

BEARING ASSY

Replaces 422348A1

1шт.

107

152539

SCREW,Cyl Hd, M16 x 100mm, Cl 12.9

Replaces 422349A1

4шт.

109

1476492

O-RING

Replaces 422351A1

1шт.

111

8485166

BUSHING

125 x 45/M16 x 43, Replaces 422352A1

2шт.

112

1637351

PLUG,Hex Skt, M10 x 1 x 12mm

M10 x 1, Replaces 420702A1

1шт.

113

1403736

DRAIN PLUG,M8 x 1

Replaces 420646A1

3шт.

126

763075

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

9,25 x 1,78-NB90 O 012-8309, Replaces 238-6012

2шт.

135

970659

PLUG,M12 x 1.5

M12 x 1,5-ED EO, Replaces 420647A1

2шт.

143

8485043

BUSHING

125 x 45/M16 x 43, Replaces 422353A1

1шт.

147

1402905

O-RING,12.42mm ID x 1.78mm Width

12,42 x 1,78-NB90 O 014-8309 B&L, Replaces 422354A1

2шт.

148

1468962

PLUG

Replaces 421705A1

1шт.

Выбрано товаров: 15
