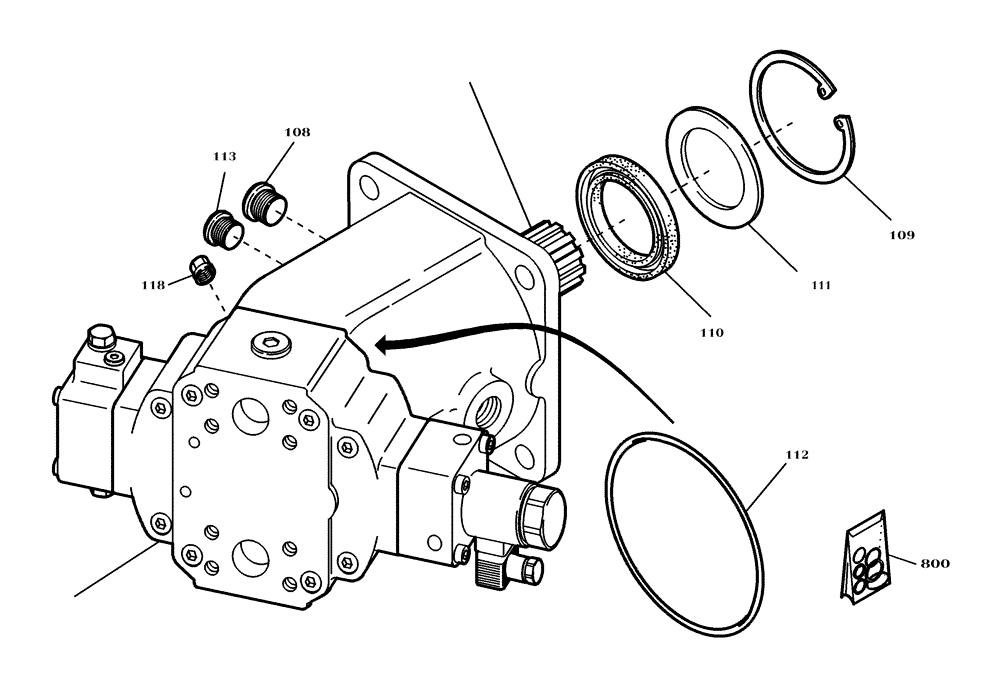

Запчасти Case 321D (22.120[2987080000]) - AXIAL PISTON MOTOR INSTALLATION STANDARD (35) - HYDRAULIC SYSTEMS

1

2813654

HYDRAULIC MOTOR

Incl. 10-118

1шт.

10

1415496

SCREW,M12 x 80mm

M12 x 80, Not Illustrated

1шт.

20

4154872

SET SCREW,Hex Soc, M12 x 50, Dog Pt

Not Illustrated, Replaces 420461A1

1шт.

30

1449015

PIN

Not Illustrated, Replaces 420453A1

1шт.

40

1471558

ORIFICE

Not Illustrated

1шт.

101

Drive Device (2812959) See Fig 22.123

1шт.

102

Regulation (2988374) See Fig 22.125

1шт.

108

G2537412

PLUG

Replaces 420432A1

1шт.

109

300633

SNAP RING,M80, Internal

1шт.

110

K9646094

GASKET

Replaces 422166A1

1шт.

111

244542

SHIM

M8 x 60-8.8-A2B, Replaces 422167A1

1шт.

112

8402637

O-RING

101,19 x 3,53 O 242-8307 B&L, Replaces 422169A1

1шт.

113

G2537412

PLUG

Replaces 420432A1

1шт.

118

1401644

NUT

Replaces 420462A1

2шт.

800

6914353

GASKET KIT

1шт.
