(20.010[2987070000]) - HYDRAULIC SYSTEM BASIC MACHINE

Запчасти Case 321D (20.010[2987070000]) - HYDRAULIC SYSTEM BASIC MACHINE (35) - HYDRAULIC SYSTEMS

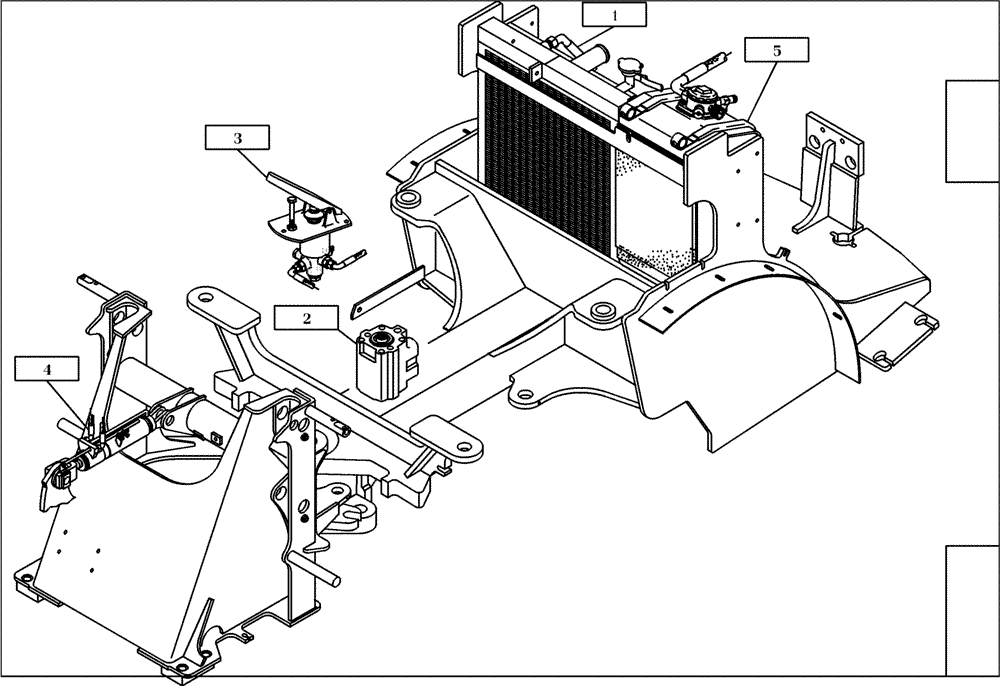

Схема запчастей Case 321D - (20.010[2987070000]) - HYDRAULIC SYSTEM BASIC MACHINE (35) - HYDRAULIC SYSTEMS
3
2
21
51
4
5
1
24
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

Hydraulic System Driving (2813753), See Fig 20.100

1шт.

2

Hydraulic System Steering (2813754, See Fig 20.530

1шт.

3

Hydraulic System Brake (2813755, See Fig 20.540

1шт.

4

Hydraulic System Work (2813995), See Fig 20.500

1шт.

5

Hyd. Oil Tank Installation (4552058), See Fig 10.100

1шт.
