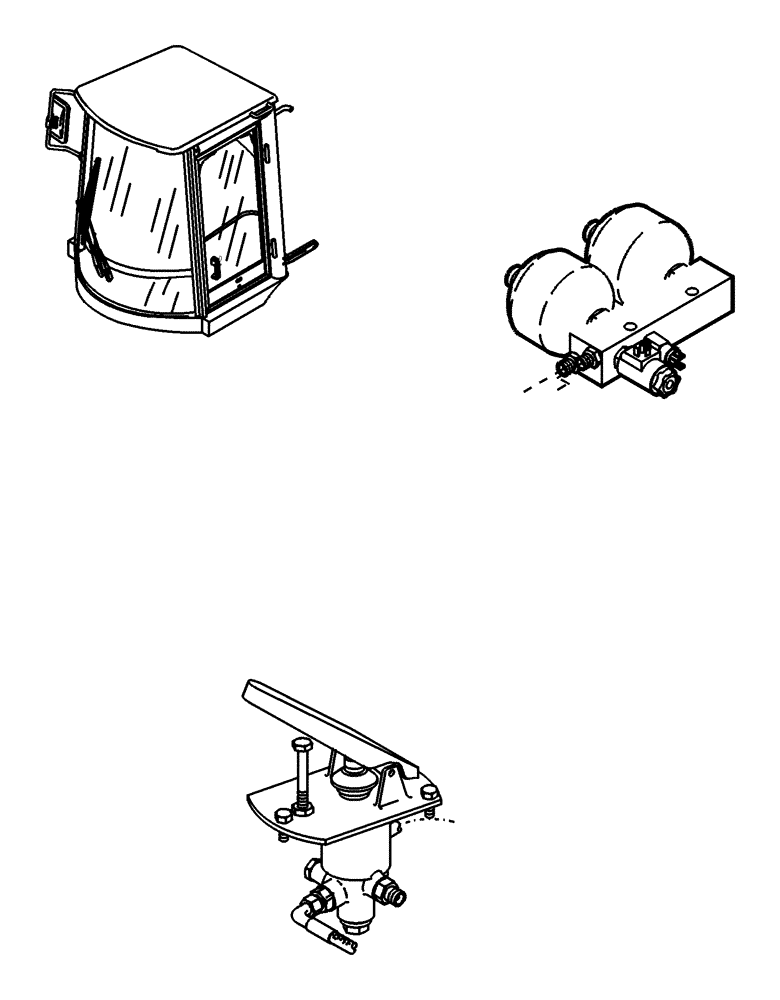

Запчасти Case 321D (20.545[001]) - HYDRAULIC SYSTEM EMERGENCY-STEERIN FAST GEAR (OPTION) (S/N 591052-UP) No Description

215

424231A1

1шт.

216

424232A1

HYDRAULIC HOSE

1шт.

231

NS

NOT SERVICED

SEE FIGURE 23.265/001

1шт.

235

424084A1

RESERVOIR, HYDRAULIC

1шт.

236

814-10075

BOLT,Hex, M10 x 1.5 x 75mm, Cl 8.8

2шт.

238

832-46410

NUT,M10 x 1.5, Cl 8

2шт.

240

422532A1

TEE

1шт.

241

424233A1

FITTING

1шт.

242

424293A1

VALVE, CHECK

1шт.

243

424261A1

HYD CONNECTOR

1шт.

237

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.
