/ / / / / / / / (20.540[002]) - HYDRAULIC SYSTEM BRAKE CHARGING (OPTION) (S/N 591052-UP)

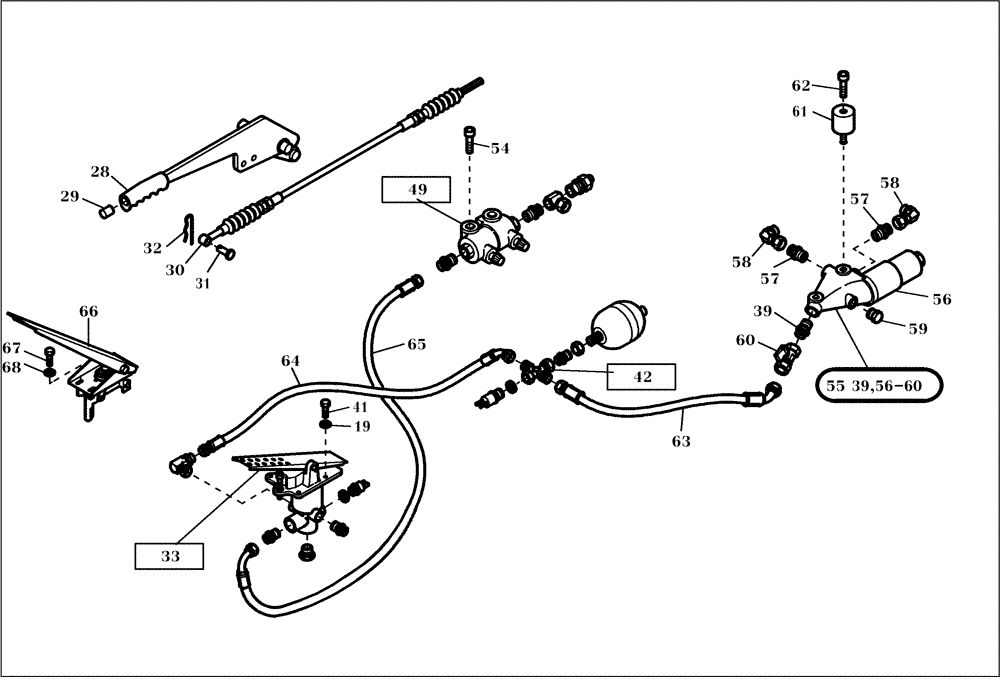

Запчасти Case 321D (20.540[002]) - HYDRAULIC SYSTEM BRAKE CHARGING (OPTION) (S/N 591052-UP) No Description
![Схема запчастей Case 321D - (20.540[002]) - HYDRAULIC SYSTEM BRAKE CHARGING (OPTION) (S/N 591052-UP) No Description](https://partsell.ru/storage/images/casece/172545.png)
66
58
64
57
59
39
61
42
58
65
41
62
54
49
32
68
19
28
56
63
31
30
57
55
67
60
29
33
19
422784A1
WASHER
4шт.
28
422785A1
LEVER ASSY & KNOB
1шт.
29
422786A1
BUTTON
1шт.
30
422787A1
FLEXIBLE CONTROL
1шт.
31
422788A1
PIN
1шт.
32
422789A1
PIN
1шт.
33
NS
NOT SERVICED
SEE FIGURE 23.291/001
1шт.
41
422799A1
SCREW
3шт.
42
NS
NOT SERVICED
SEE FIGURE 22.300/001
1шт.
49
NS
NOT SERVICED
SEE FIGURE 23.050/001
1шт.
54
422808A1
SCREW
2шт.
55
NS
NOT SERVICED
SEE FIGURE 23.031/001
1шт.
56
NS
NOT SERVICED
SEE FIGURE 23.032/001
1шт.
57
420477A1
HYD CONNECTOR
2шт.
58
421415A1
ELBOW
2шт.
59
420467A1
PLUG
2шт.
60
422811A1
RESTRICTOR
1шт.
61
422812A1
BEARING
2шт.
62
422813A1
SCREW
2шт.
63
420962A1
HOSE
1шт.
64
422814A1
HOSE
1шт.
65
422815A1
HOSE
1шт.
66
NS
NOT SERVICED
SEE FIGURE 13.110/001
1шт.
67
422816A1
STUD
4шт.
68
421253A1
WASHER
4шт.
