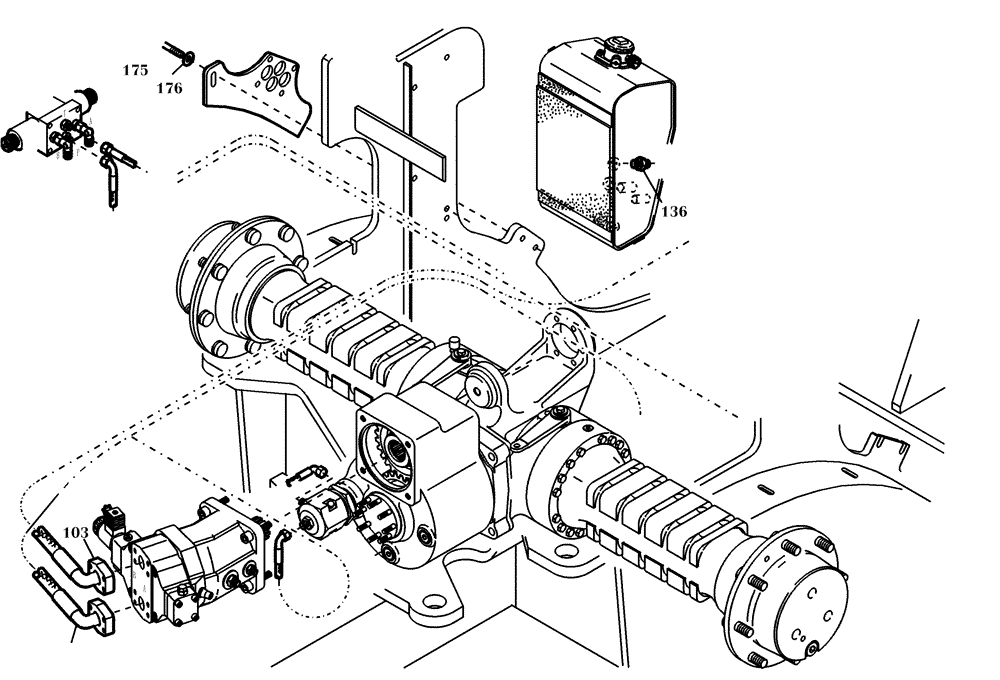

Запчасти Case 321D (20.100[002]) - HYDRAULIC SYSTEM DRIVING FAST GEAR (OPTION) (S/N 591052-UP) No Description

102

424225A1

HOSE

Used With 420464A1 O-Ring

1шт.

103

424226A1

HOSE

Used With 420464A1 O-Ring

1шт.

115

424227A1

HOSE

1шт.

116

424071A1

HOSE

1шт.

117

424228A1

HOSE

1шт.

118

424229A1

HOSE

1шт.

130

NS

NOT SERVICED

SEE FIGURE 23.211/001

1шт.

136

424081A1

HYD CONNECTOR

2шт.

139

420717A1

TEE

1шт.

174

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

175

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

176

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

177

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.
