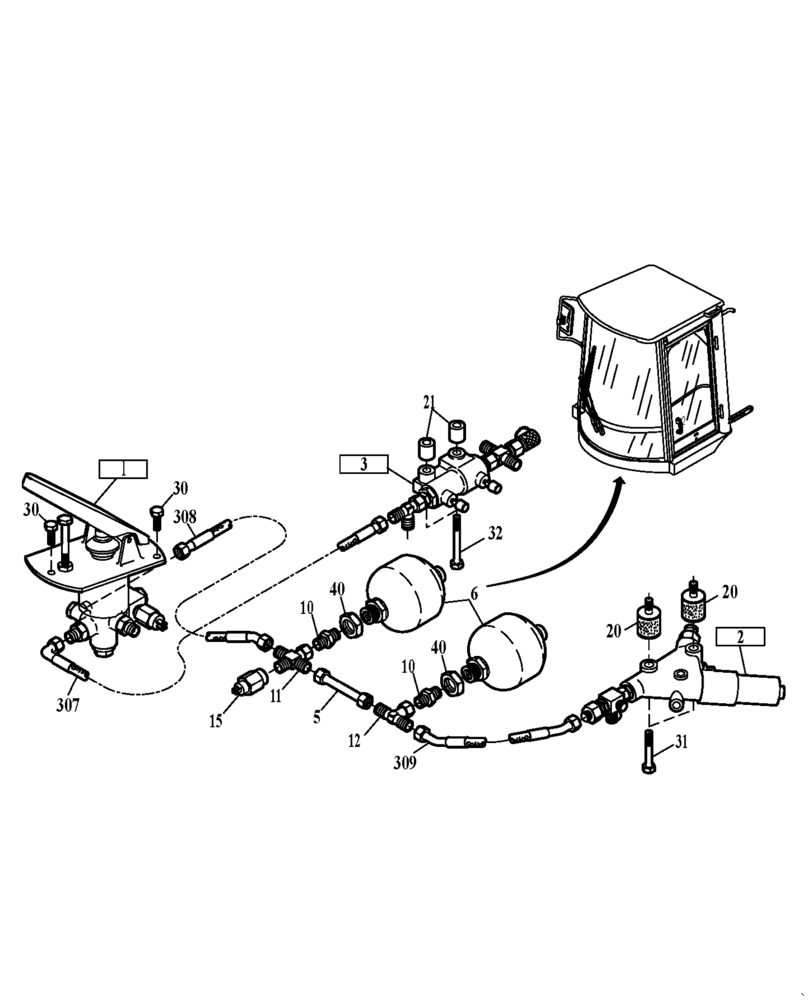

Запчасти Case 321D (20.010[002]) - HYDRAULIC SYSTEM BASIC MACHINE FAST GEAR (OPTION) (S/N 591052-UP) No Description

1

NS

NOT SERVICED

SEE FIGURE 23.291/002

1шт.

2

NS

NOT SERVICED

SEE FIGURE 23.031/002

1шт.

3

NS

NOT SERVICED

SEE FIGURE 23.050/002

1шт.

5

424111A1

PIPE

1шт.

6

422801A1

ACCUMULATOR

2шт.

10

421437A1

HYD CONNECTOR

2шт.

11

422803A1

RESTRICTOR

1шт.

12

422457A1

SOCKET

1шт.

15

422804A1

PRESSURE SWITCH

1шт.

20

422812A1

BEARING

2шт.

21

424112A1

SLEEVE

2шт.

30

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

3шт.

31

814-8055

BOLT,Hex, M8 x 1.25 x 55mm, Cl 8.8

2шт.

32

814-8075

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

2шт.

40

422802A1

NUT

2шт.

307

420960A1

HOSE

1шт.

308

420961A1

HOSE

1шт.

309

424260A1

HOSE

1шт.
