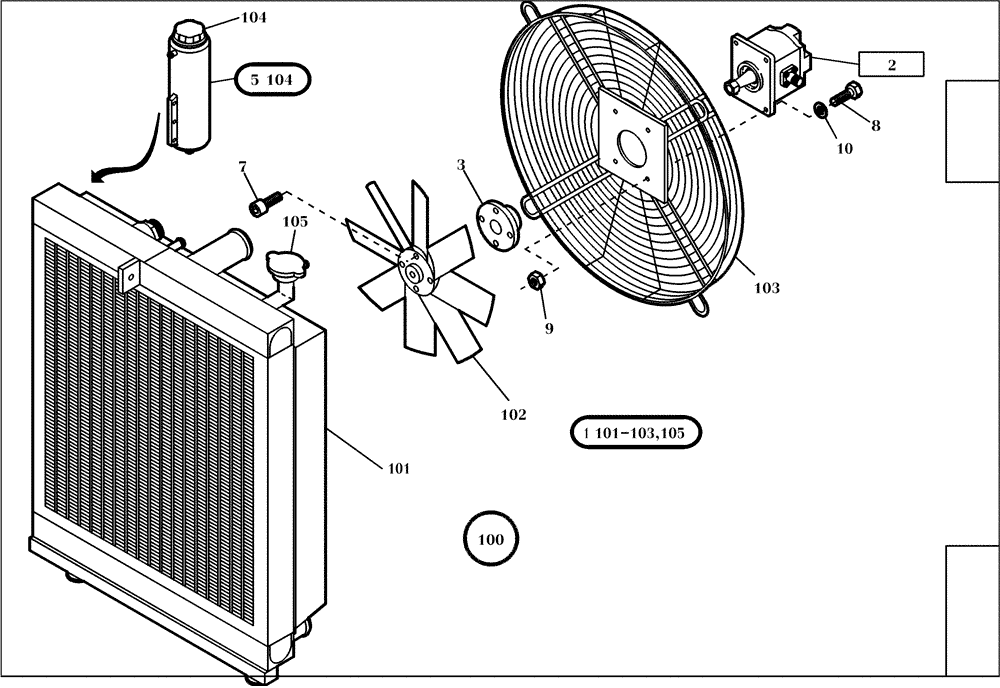

Запчасти Case 321D (15.122[001]) - COMBINED COOLER WATER AND OIL (S/N 591052-UP) No Description

1

420757A1

OIL COOLER

1шт.

2

NS

NOT SERVICED

SEE FIGURE 22.130/001

1шт.

3

420761A1

HUB

1шт.

5

420762A1

RESERVOIR

1шт.

7

864-8016

HEX SOC SCREW,M8 x 16mm, Cl 8.8

4шт.

8

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

9

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

10

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

100

423837A1

RADIATOR

1шт.

101

423838A1

HOUSING

1шт.

102

423839A1

FAN

1шт.

103

423840A1

GRILLE

1шт.

104

423841A1

RADIATOR CAP

1шт.

105

423842A1

RADIATOR CAP

1шт.
