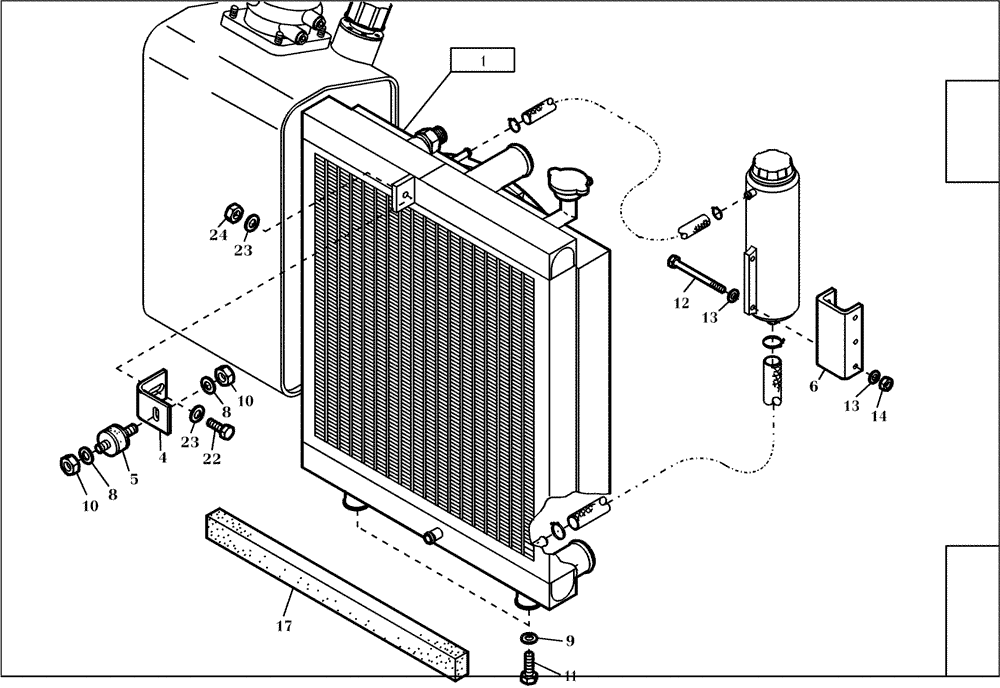

Запчасти Case 321D (15.120[001]) - COMB. COOL. SYST. WATER AND OIL INSTALLATION (S/N 591052-UP) No Description

1

NS

NOT SERVICED

SEE FIGURE 15.121/001

1шт.

4

423551A1

BRACKET

1шт.

5

423552A1

TRAVEL LIMITER

1шт.

6

420769A1

HOLDER

1шт.

8

420222A1

WASHER

2шт.

9

420219A1

WASHER

2шт.

10

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

11

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

12

814-6070

BOLT,Hex, M6 x 1 x 70mm, Cl 8.8

2шт.

13

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

14

832-46406

NUT,M6 x 1, Cl 8

2шт.

17

420773A1

SEAL

1шт.

22

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

1шт.

24

832-46410

NUT,M10 x 1.5, Cl 8

1шт.

23

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.
