(13.011[001]) - ENGINE MOUNTING PARTS (S/N 591052-UP)

Запчасти Case 321D (13.011[001]) - ENGINE MOUNTING PARTS (S/N 591052-UP) No Description

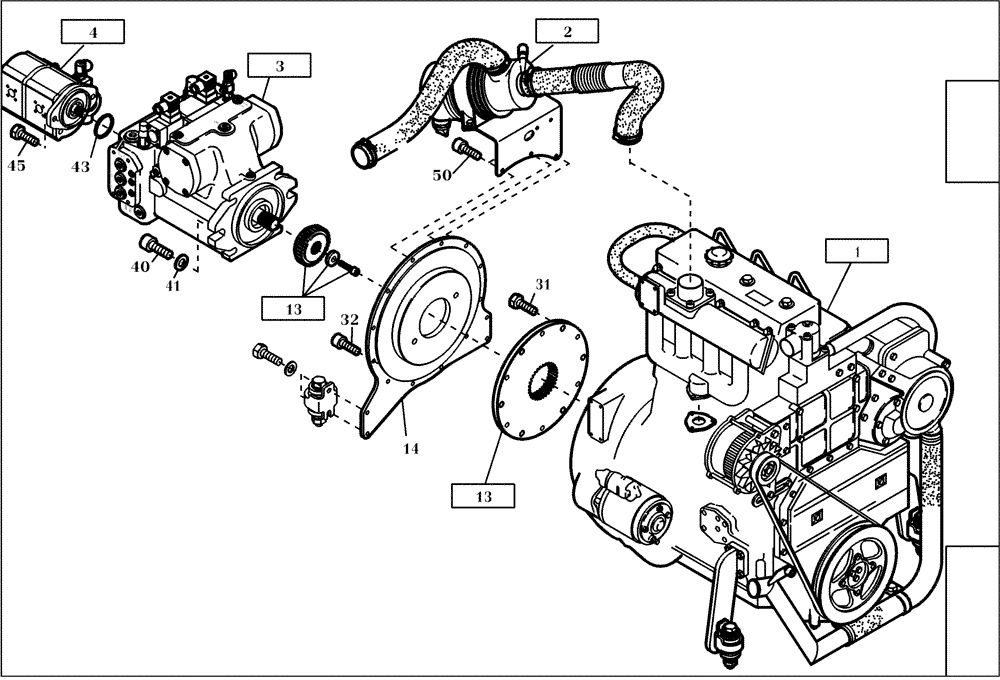

Схема запчастей Case 321D - (13.011[001]) - ENGINE MOUNTING PARTS (S/N 591052-UP) No Description
r
f
50
13
40
41
s
a1
45
f
x1
1
4
32
2
x2
3
mh
13
14
31
f
e
43
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

NS

NOT SERVICED

SEE FIGURE 13.020/001

1шт.

2

NS

NOT SERVICED

SEE FIGURE 13.230/001

1шт.

3

NS

NOT SERVICED

SEE FIGURE 22.011/001

1шт.

4

NS

NOT SERVICED

SEE FIGURE 22.050/001

1шт.

13

NS

NOT SERVICED

SEE FIGURE 17.102/001

1шт.

14

422381A1

LID

1шт.

31

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

6шт.

32

422362A1

SCREW

9шт.

40

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

2шт.

41

423550A1

WASHER

2шт.

43

420729A1

O-RING

1шт.

45

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

2шт.

50

864-10030

HEX SOC SCREW,M10 x 30mm, Cl 8.8

3шт.
