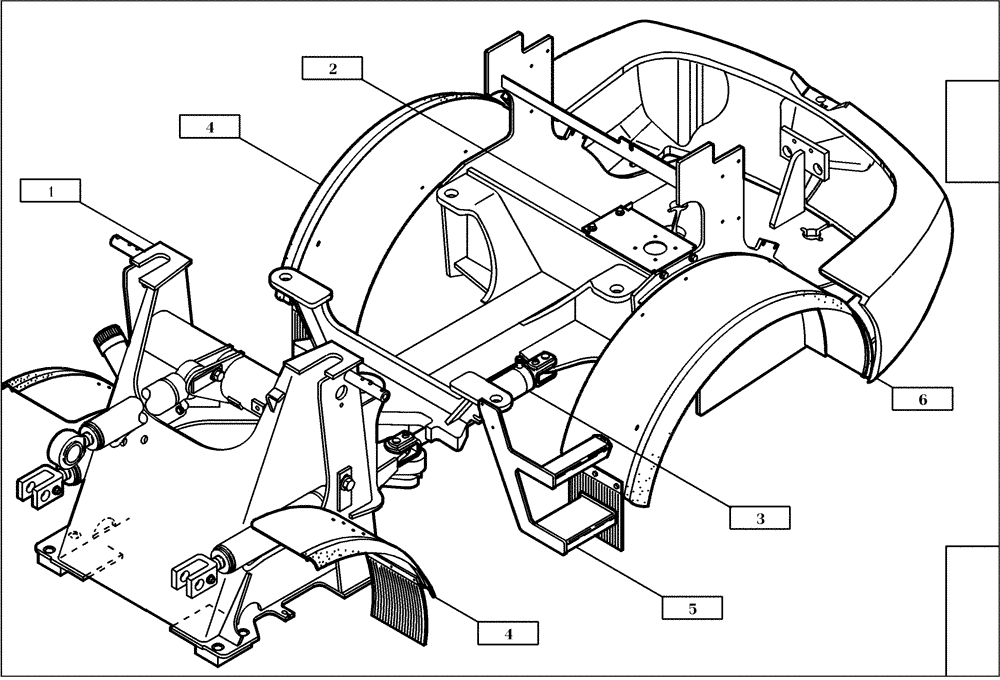

Запчасти Case 321D (01.100[001]) - FRAME BASIC MACHINE COMPONENTS (S/N 591052-UP) No Description
![Схема запчастей Case 321D - (01.100[001]) - FRAME BASIC MACHINE COMPONENTS (S/N 591052-UP) No Description](https://partsell.ru/storage/images/casece/746534.png)
6
4
1
5
3
2
4
№
Артикул
Название
Примечание
Количество
1
NS
NOT SERVICED
SEE FIGURE 01.400/002
1шт.
1
NS
NOT SERVICED
SEE FIGURE 01.400/001
1шт.
2
NS
NOT SERVICED
SEE FIGURE 01.500/002
1шт.
2
NS
NOT SERVICED
SEE FIGURE 01.500/001
1шт.
3
NS
NOT SERVICED
SEE FIGURE 01.450/001
1шт.
4
NS
NOT SERVICED
SEE FIGURE 01.680/001
1шт.
5
NS
NOT SERVICED
SEE FIGURE 01.810/001
1шт.
5
NS
NOT SERVICED
SEE FIGURE 01.811/001
1шт.
5
NS
NOT SERVICED
SEE FIGURE 01.810/002
1шт.
6
NS
NOT SERVICED
SEE FIGURE 12.010/001
1шт.
41
NS
NOT SERVICED
SEE FIGURE 01.680/002
1шт.
Выбрано товаров: 11
