(02.212[002]) - REAR AXLE FAST GEAR SELF-LOCKING (OPTION) (S/N 591052-UP)

Запчасти Case 321D (02.212[002]) - REAR AXLE FAST GEAR SELF-LOCKING (OPTION) (S/N 591052-UP) No Description

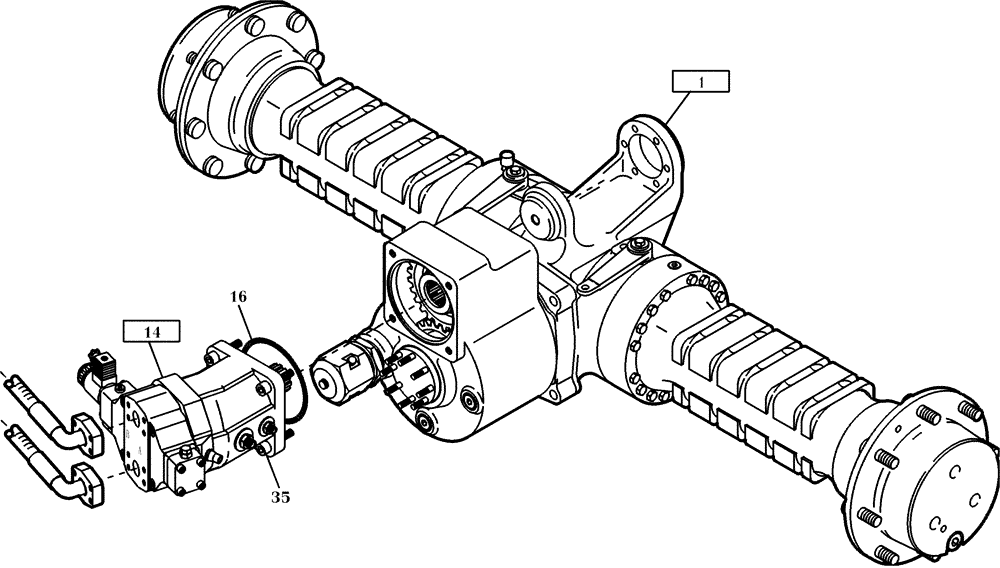

Схема запчастей Case 321D - (02.212[002]) - REAR AXLE FAST GEAR SELF-LOCKING (OPTION) (S/N 591052-UP) No Description
14
35
b
a
16
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

NS

NOT SERVICED

SEE FIGURE 02.213/002

1шт.

14

NS

NOT SERVICED

SEE FIGURE 22.122/002

1шт.

16

420465A1

SEALING RING

1шт.

35

864-12040

HEX SOC SCREW,M12 x 40mm, Cl 8.8

4шт.

Выбрано товаров: 4
