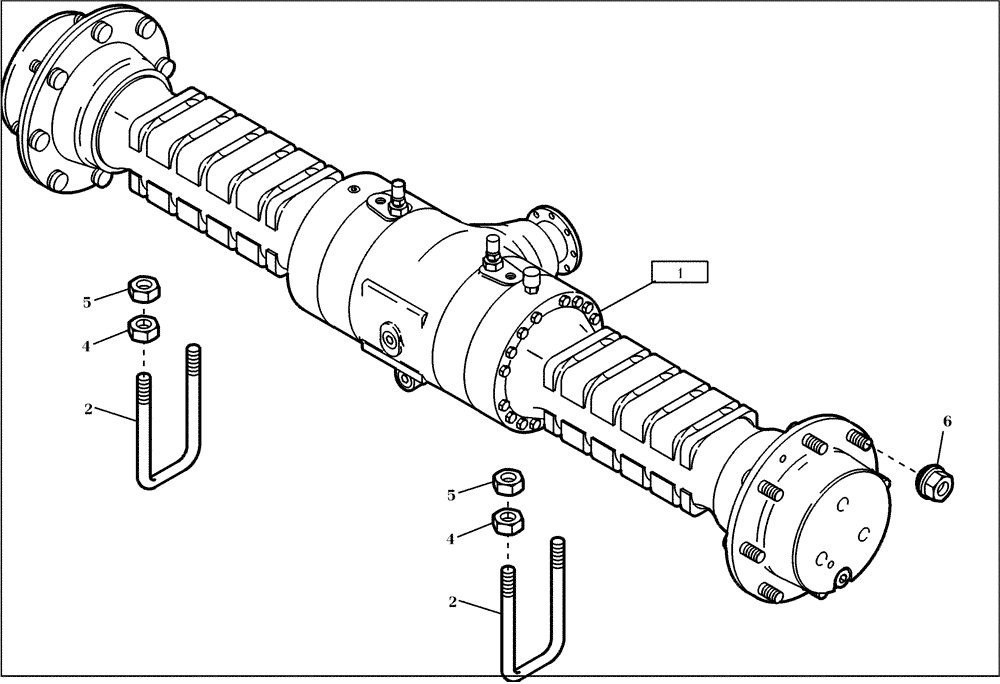

Запчасти Case 321D (02.110[001]) - FRONT AXLE FAST GEAR (OPTION) (S/N 591052-UP) No Description

1

NS

NOT SERVICED

SEE FIGURE 02.111/001

1шт.

2

2813721

BOLT

U-Bolt, Replaces 424286A1

2шт.

4

829-1424

NUT,M24, Cl 10

4шт.

5

424287A1

LOCK NUT

4шт.

6

420328A1

WHEEL NUT

16шт.

6

424242A1

CAP

16шт.
