/ / / / / / / / (95.005[001]) - CRANK SHAFT (S/N 591052-UP)

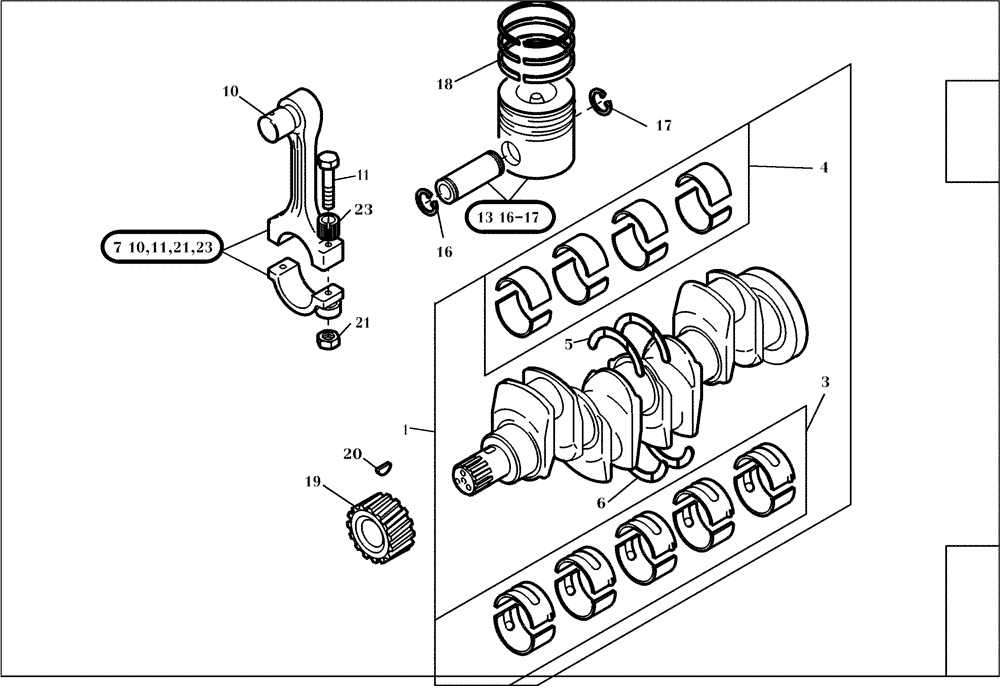

Запчасти Case 321D (95.005[001]) - CRANK SHAFT (S/N 591052-UP) No Description
![Схема запчастей Case 321D - (95.005[001]) - CRANK SHAFT (S/N 591052-UP) No Description](https://partsell.ru/storage/images/casece/623286.png)
10
6
4
3
5
16-17
20
1
7
11
13
16
17
18
23
21
19
1
291956A1
CRANKSHAFT
1шт.
3
3118150R1
BEARING SET
Standard Set Of 5
1шт.
3
3118151R1
BEARING SET
Undersize 0.25 Set of 5
1шт.
3
3118152R1
BEARING SET
Undersize 0.50 Set of 5
1шт.
3
3118153R1
BEARING SET
Undersize 0.75 Set of 5
1шт.
4
218627A1
BEARING SET
Standard Set Of 4
1шт.
4
218628A1
BEARING SET
Undersize 0.25 Set of 4
1шт.
4
218629A1
BEARING SET
Undersize 0.50 Set of 4
1шт.
4
218630A1
BEARING SET
Undersize 0.75 Set of 4
1шт.
5
218292A1
THRUST WASHER
2шт.
5
F62448
WASHER, THRUST
1шт.
6
218294A1
THRUST WASHER
2шт.
6
F62450
WASHER, THRUST
1шт.
7
321638A1
ROD, CONNECTING
4шт.
10
293493A1
BUSHING
4шт.
11
311752A1
BOLT
8шт.
13
311753A1
PISTON
4шт.
13
422187A1
PISTON
4шт.
13
422188A1
PISTON
4шт.
16
292992A1
RETAINER
4шт.
17
292992A1
RETAINER
4шт.
18
311754A1
RING, PISTON
4шт.
18
422189A1
RING, PISTON
4шт.
18
422190A1
RING, PISTON
4шт.
19
218303A1
PINION
1шт.
20
218304A1
BUCKET TOOTH KEY
1шт.
21
218299A1
NUT
8шт.
23
313621A1
BUSHING
8шт.
