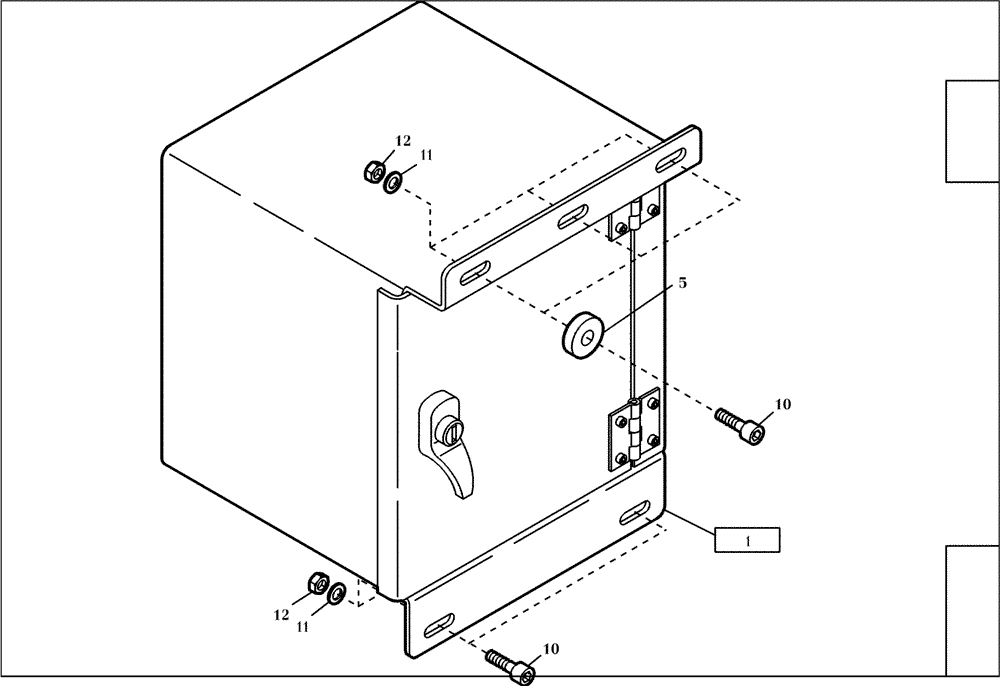

Запчасти Case 321D (92.040[001]) - TOOLBOX INSTALLATION (OPTION) (S/N 591052-UP) No Description

1

NS

NOT SERVICED

SEE FIGURE 92.042/001

1шт.

5

424191A1

CAM

3шт.

10

424192A1

SCREW

5шт.

11

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

5шт.

12

43362

NUT,M8 x 1.25, Cl 10

5шт.
