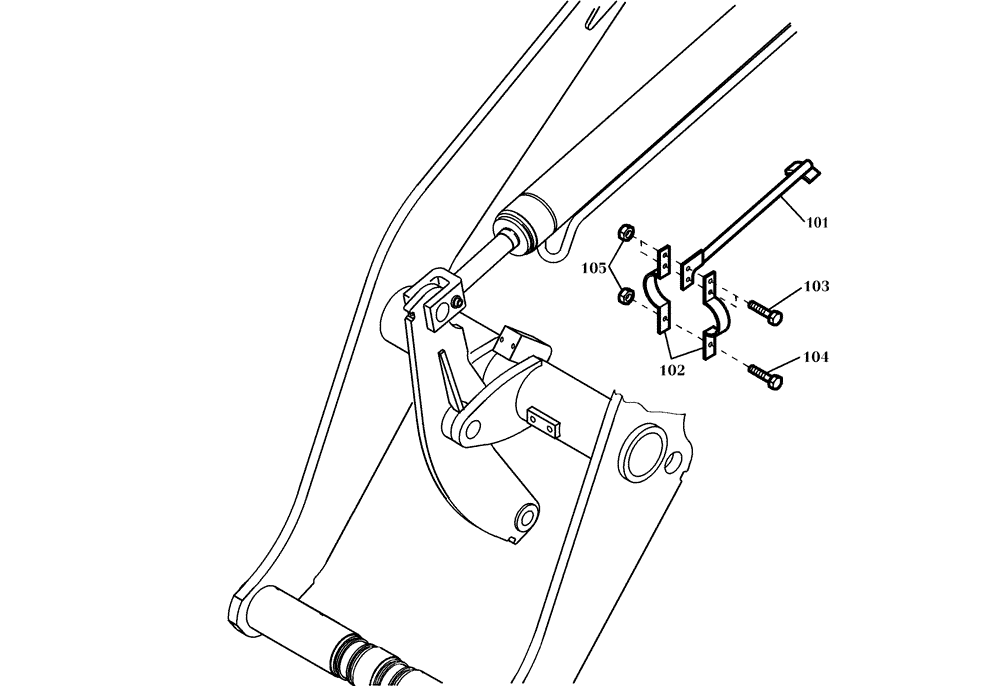

Запчасти Case 321D (76.050[001]) - LEVEL INDICATOR (OPTION) (S/N 591052-UP) No Description

1

422544A1

INDICATOR

1шт.

101

421881A1

STEM

1шт.

102

422545A1

BRACKET

1шт.

103

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

2шт.

104

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

105

100016

NUT,M10 x 1.5, Cl 8

3шт.
