(02.061[001]) - RIGID AXLE MOUNTING PARTS STANDARD (OPTION) (S/N 591052-UP)

Запчасти Case 321D (02.061[001]) - RIGID AXLE MOUNTING PARTS STANDARD (OPTION) (S/N 591052-UP) No Description

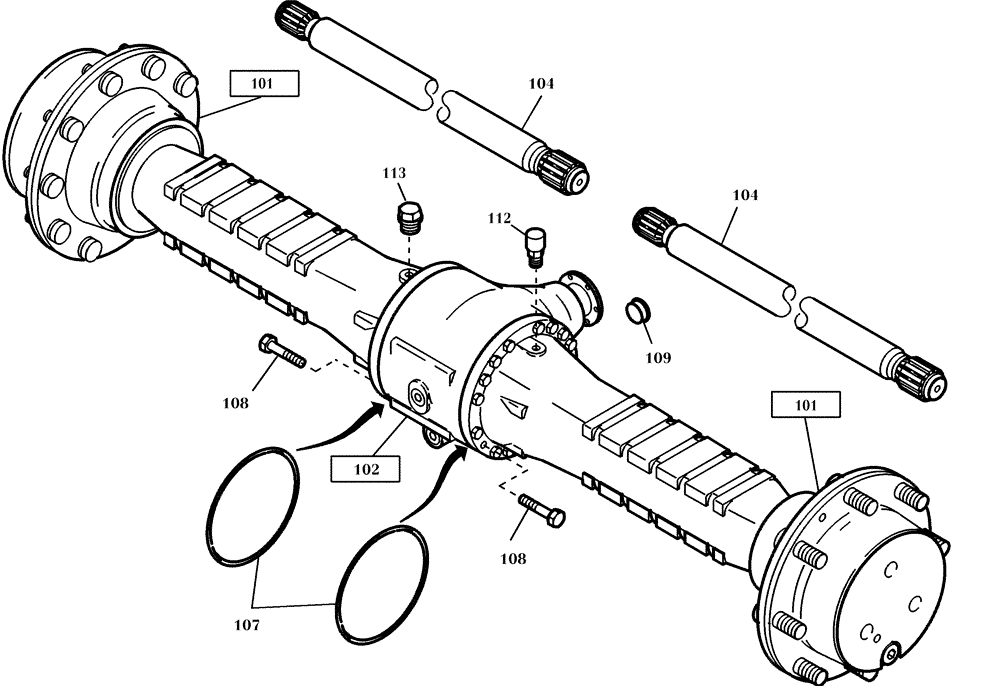

Схема запчастей Case 321D - (02.061[001]) - RIGID AXLE MOUNTING PARTS STANDARD (OPTION) (S/N 591052-UP) No Description
108
101
104
102
113
108
112
107
104
101
109
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

421660A1

FRONT AXLE

1шт.

101

NS

NOT SERVICED

SEE FIGURE 02.230/001

2шт.

102

NS

NOT SERVICED

SEE FIGURE 16.610/001

1шт.

104

421665A1

HALF SHAFT

2шт.

107

420323A1

O-RING

2шт.

108

626-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

32шт.

109

420325A1

PLUG

1шт.

112

420326A1

BLEEDER

1шт.

113

933679R1

PLUG,Hex Soc, M10 x 1, Pipe

1шт.
