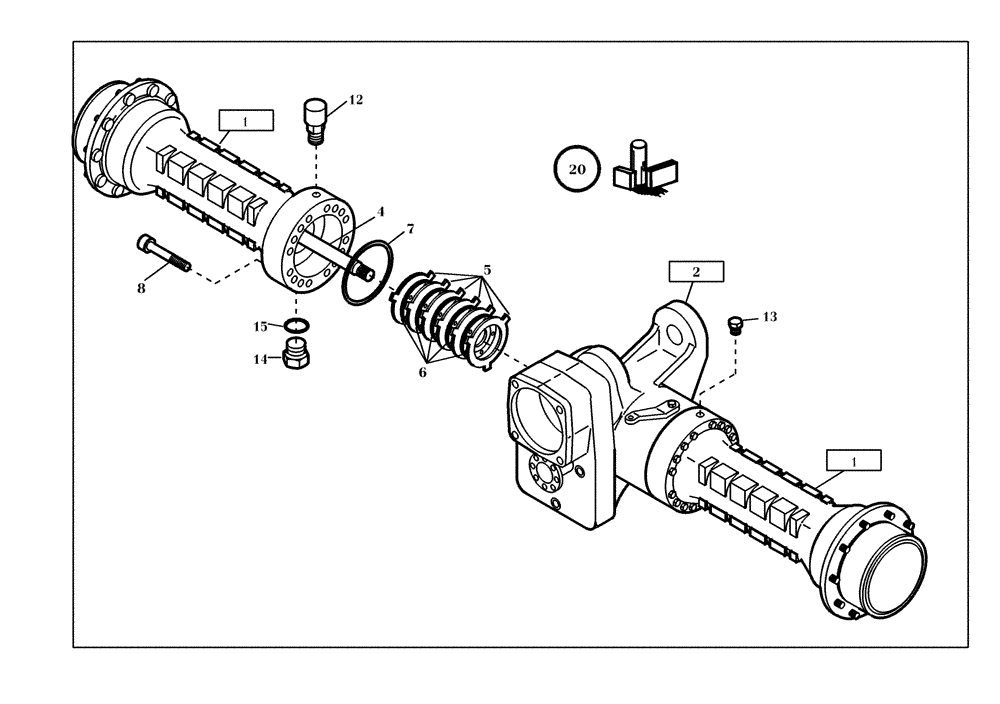

Запчасти Case 321D (02.021[001]) - REAR AXLE MOUNTING PARTS SELF-LOCKING (OPTION) (S/N 591052-UP) No Description

1

NS

NOT SERVICED

SEE FIGURE 02.230/002

2шт.

2

NS

NOT SERVICED

SEE FIGURE 16.610/002

1шт.

4

421675A1

HALF SHAFT

2шт.

5

420373A1

DISC

12шт.

6

420374A1

DISC

10шт.

7

420323A1

O-RING

2шт.

8

826-12160

BOLT,Hex, M12 x 1.75 x 160mm, Cl 10.9

32шт.

12

420326A1

BLEEDER

1шт.

13

933679R1

PLUG,Hex Soc, M10 x 1, Pipe

1шт.

14

934221R1

PLUG,Hex Soc, M30 x 1.5

2шт.

15

3052681R1

SEALING RING,M30 x 36 x 2

2шт.

20

422533A1

AXLE

1шт.
