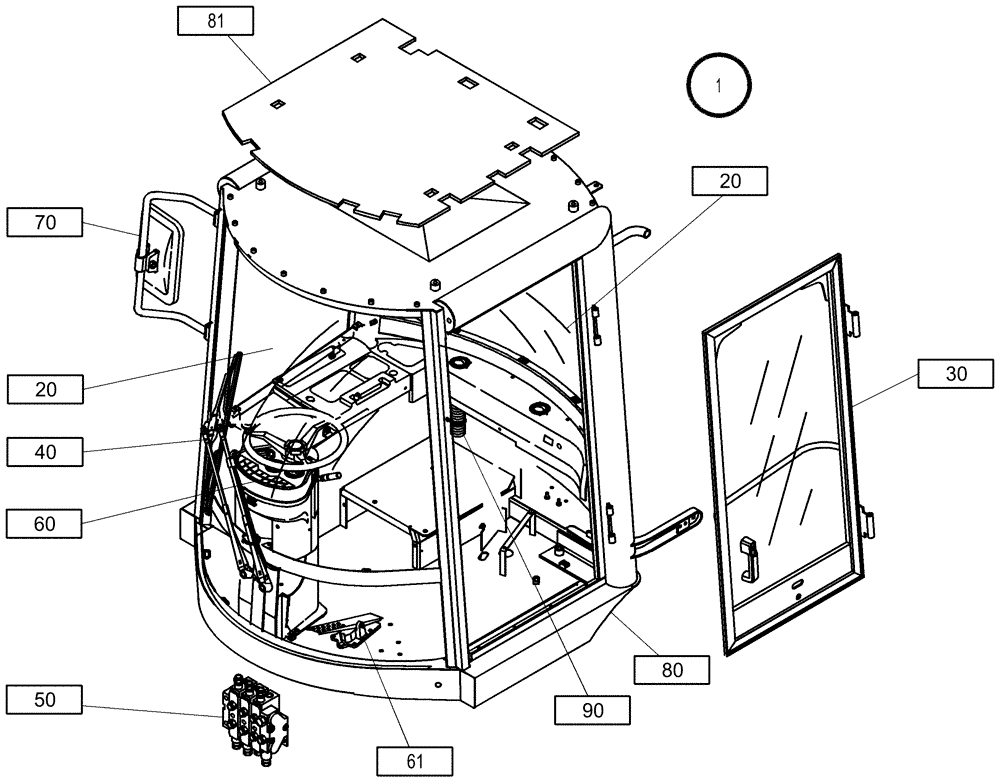

Запчасти Case 321D (34.012[001]) - CAB MODULE (OPTION) (S/N 591052-UP) No Description
![Схема запчастей Case 321D - (34.012[001]) - CAB MODULE (OPTION) (S/N 591052-UP) No Description](https://partsell.ru/storage/images/casece/596416.png)
81
90
1
70
20
80
40
30
60
50
61
20
№
Артикул
Название
Примечание
Количество
1
420775A1
CAB
1шт.
20
NS
NOT SERVICED
SEE FIGURE 34.230/001
1шт.
30
NS
NOT SERVICED
SEE FIGURE 34.220/001
1шт.
40
NS
NOT SERVICED
SEE FIGURE 34.022/002
1шт.
50
NS
NOT SERVICED
SEE FIGURE 23.610/001
1шт.
60
NS
NOT SERVICED
SEE FIGURE 34.130/001
1шт.
61
NS
NOT SERVICED
SEE FIGURE 20.540/003
1шт.
70
NS
NOT SERVICED
SEE FIGURE 34.021/001
1шт.
80
NS
NOT SERVICED
SEE FIGURE 34.022/001
1шт.
81
NS
NOT SERVICED
SEE FIGURE 34.250/001
1шт.
90
NS
NOT SERVICED
SEE FIGURE 27.010/001
1шт.
Выбрано товаров: 11
