(02.020[001]) - REAR AXLE INSTALLATION STANDARD (S/N 591052-UP)

Запчасти Case 321D (02.020[001]) - REAR AXLE INSTALLATION STANDARD (S/N 591052-UP) No Description

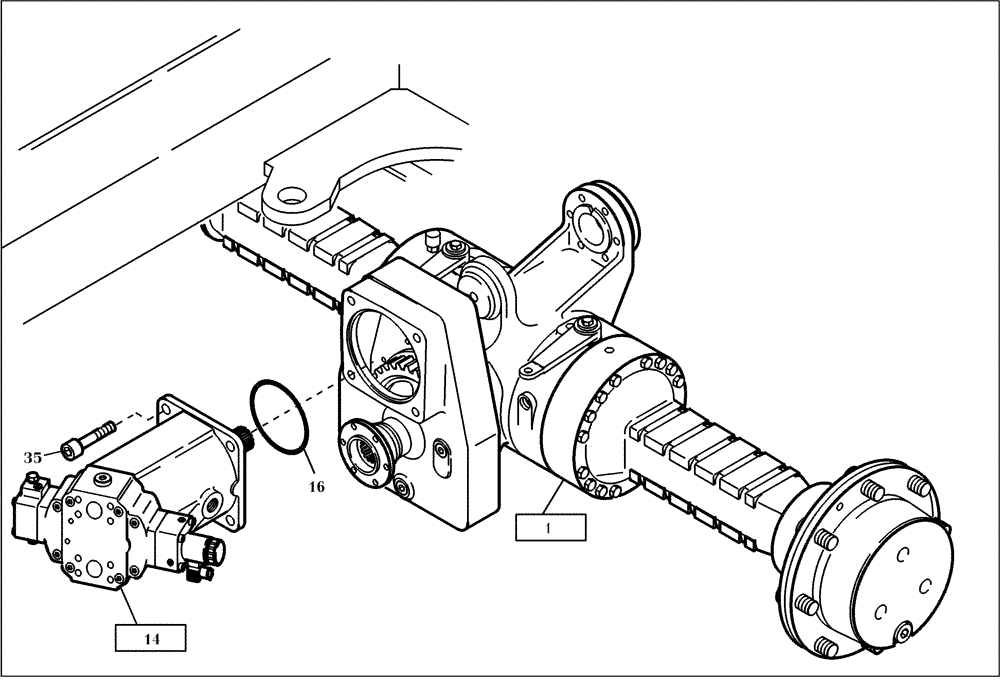

Схема запчастей Case 321D - (02.020[001]) - REAR AXLE INSTALLATION STANDARD (S/N 591052-UP) No Description
16
14
1
35
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

NS

NOT SERVICED

SEE FIGURE 02.021/002

1шт.

14

NS

NOT SERVICED

SEE FIGURE 22.120/001

1шт.

16

422171A1

O-RING

1шт.

35

864-16045

HEX SOC SCREW,M16 x 45mm, Cl 8.8

4шт.

Выбрано товаров: 4
