Запчасти Case 321D (32.500[001]) - ELECTRICAL SYSTEM CAB (S/N 591052-UP) No Description

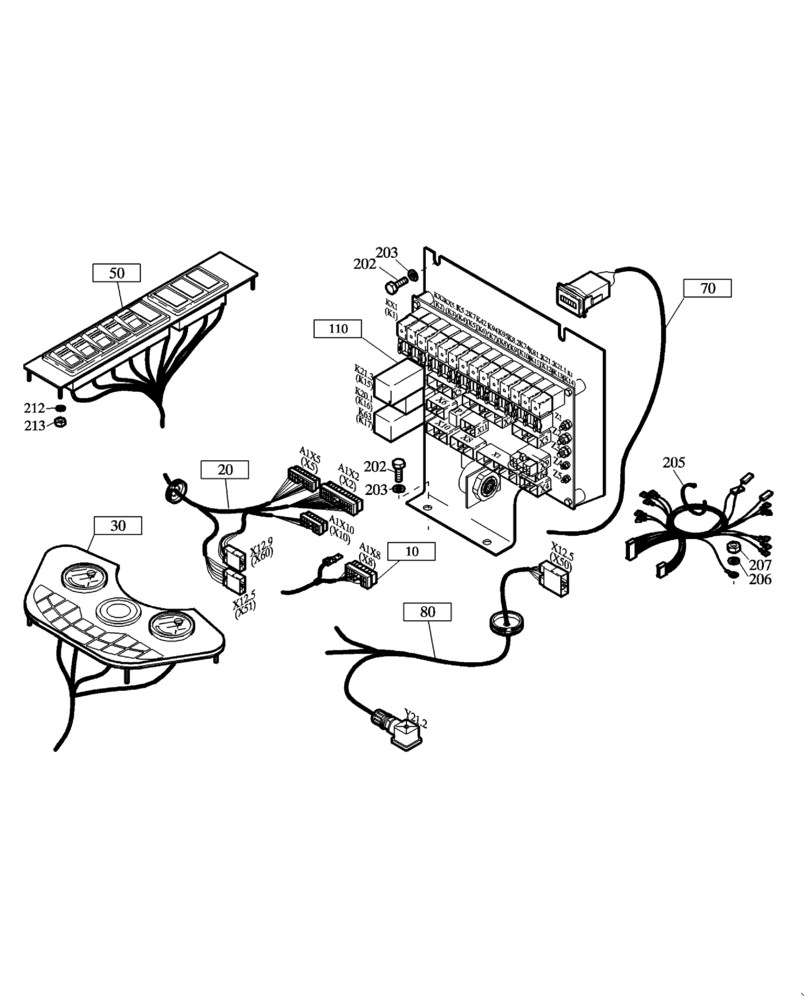

Схема запчастей Case 321D - (32.500[001]) - ELECTRICAL SYSTEM CAB (S/N 591052-UP) No Description

Артикул

Название

Примечание

Количество

10

NS

NOT SERVICED

SEE FIGURE 32.510/001

1шт.

20

NS

NOT SERVICED

SEE FIGURE 32.133/001

1шт.

30

NS

NOT SERVICED

SEE FIGURE 32.402/001

1шт.

50

NS

NOT SERVICED

SEE FIGURE 32.420/001

1шт.

70

NS

NOT SERVICED

SEE FIGURE 32.153/001

1шт.

80

NS

NOT SERVICED

SEE FIGURE 32.433/001

1шт.

110

NS

NOT SERVICED

SEE FIGURE 32.152/001

1шт.

202

421252A1

SCREW

4шт.

203

421253A1

WASHER

4шт.

205

421254A1

CLIP

19шт.

206

421255A1

WASHER

4шт.

207

421256A1

NUT

4шт.

212

421257A1

WASHER

4шт.

213

421258A1

NUT

4шт.

Выбрано товаров: 14
