/ / / / / / / / (32.422[002]) - CONTROL PANEL FAST GEAR (OPTION) (S/N 591052-UP)
Запчасти Case 321D (32.422[002]) - CONTROL PANEL FAST GEAR (OPTION) (S/N 591052-UP) No Description

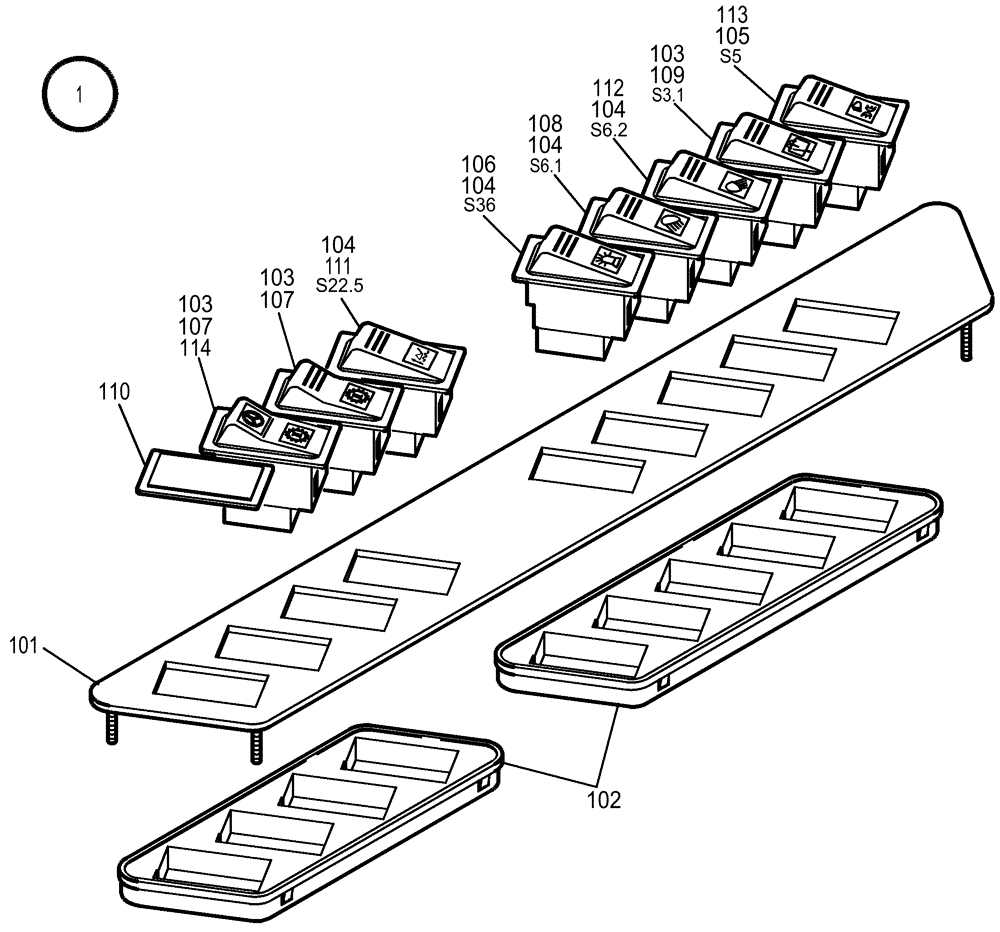

![Схема запчастей Case 321D - (32.422[002]) - CONTROL PANEL FAST GEAR (OPTION) (S/N 591052-UP) No Description](https://partsell.ru/storage/images/casece/1057222.png)
s36
102
1
114
106
112
107
104
104
103
111
s5
104
108
113
s22.5
s6.1
s6.2
104
103
s3.1
105
107
109
101
110
103
1
424342A1
CONTROL PANEL
1шт.
101
421092A1
NOT SERVICED
1шт.
102
421092A1
NOT SERVICED
1шт.
103
422692A1
SWITCH
2шт.
104
421183A1
TOGGLE SWITCH
4шт.
105
421184A1
TOGGLE SWITCH
1шт.
106
421178A1
LABEL
1шт.
107
421092A1
NOT SERVICED
2шт.
108
421179A1
LABEL
1шт.
109
421180A1
INSERT
1шт.
110
421092A1
NOT SERVICED
1шт.
111
421092A1
NOT SERVICED
1шт.
112
421181A1
LABEL
1шт.
113
421182A1
INSERT
1шт.
114
421092A1
NOT SERVICED
1шт.
