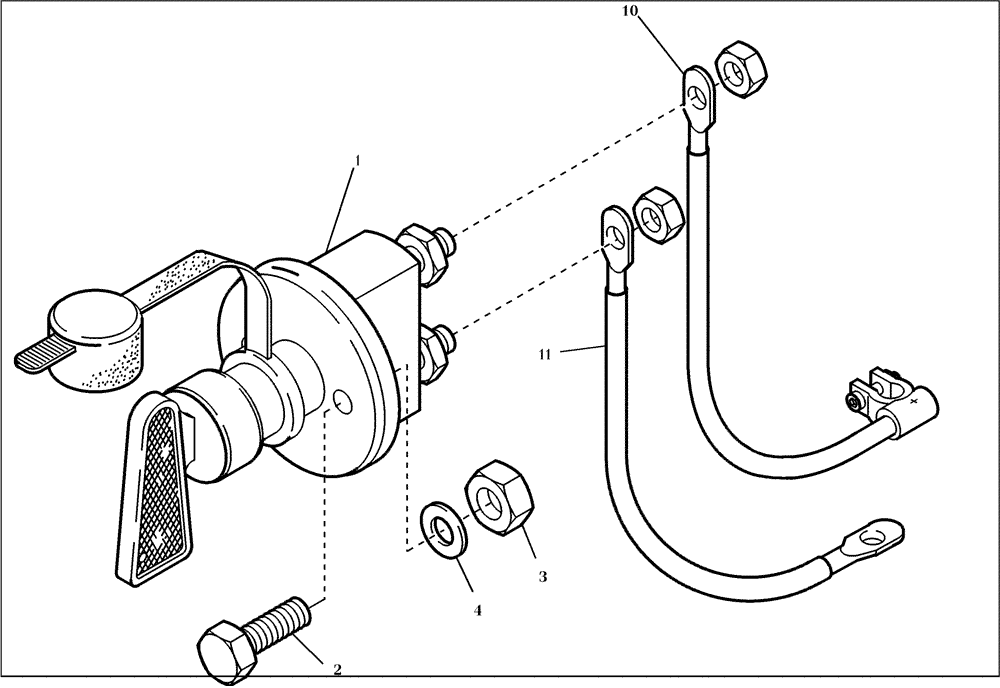

Запчасти Case 321D (32.175[002]) - MAIN SWITCH BATTERY INSTALLATION (OPTION) (S/N 591052-UP) No Description

1

423576A1

IGNITION SWITCH

Includes 8486128 Key

1шт.

8486128

KEY

1шт.

2

814-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8

2шт.

3

825-1406

NUT,M6, Cl 8

2шт.

4

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

2шт.

10

423628A1

CABLE ASSY.

1шт.

11

423629A1

CABLE ASSY.

1шт.
