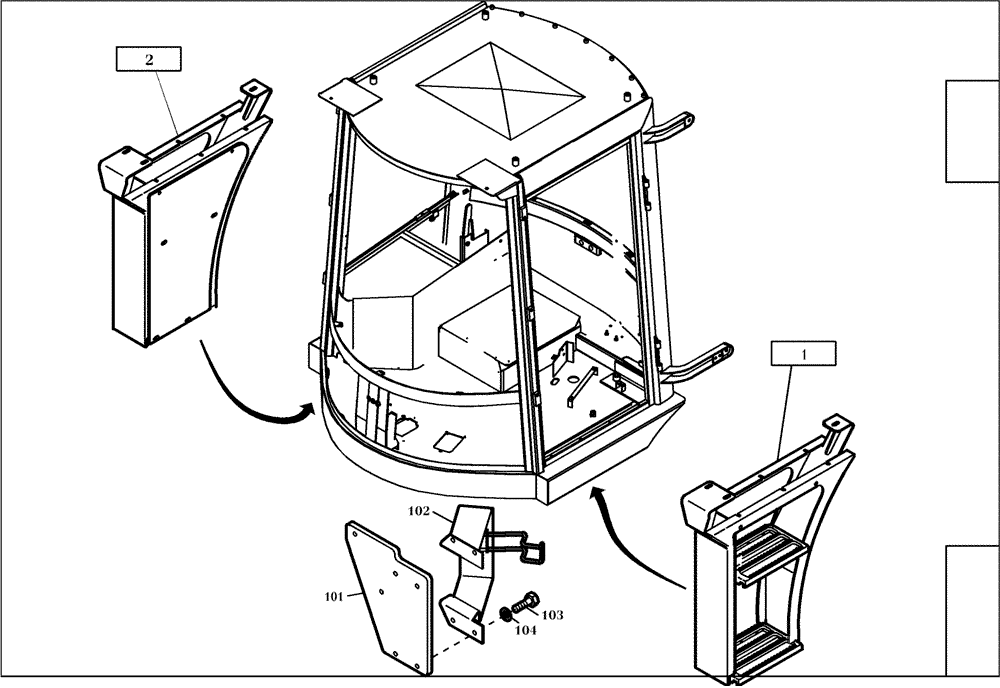

Запчасти Case 321D (01.811[002]) - STEPS MOUNTING PARTS (S/N 591052-591064) No Description

1

NS

NOT SERVICED

SEE FIGURE 01.812/002

1шт.

2

NS

NOT SERVICED

SEE FIGURE 01.812/003

1шт.

101

423515A1

SUPPORT

1шт.

102

423516A1

SUPPORT

1шт.

103

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

4шт.

104

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.
