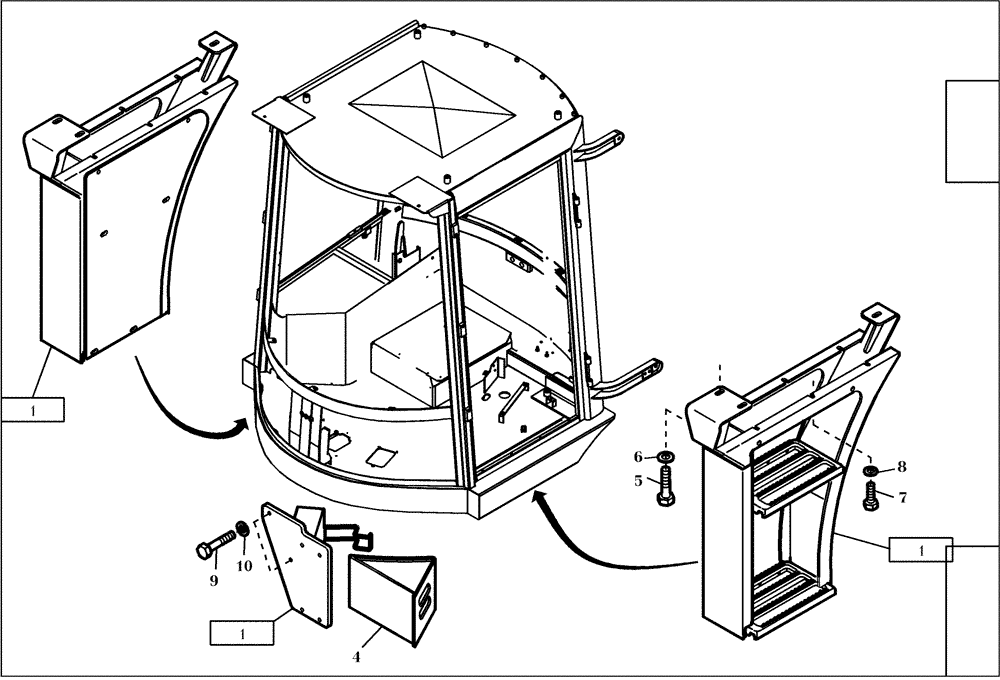

Запчасти Case 321D (01.810[001]) - STEPS INSTALLATION (S/N 591052-591064) No Description

1

NS

NOT SERVICED

SEE FIGURE 01.811/002

1шт.

4

423509A1

WEDGE

1шт.

5

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

4шт.

6

420486A1

WASHER

4шт.

7

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

6шт.

8

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

6шт.

9

120112

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

2шт.

10

420197A1

WASHER

2шт.
