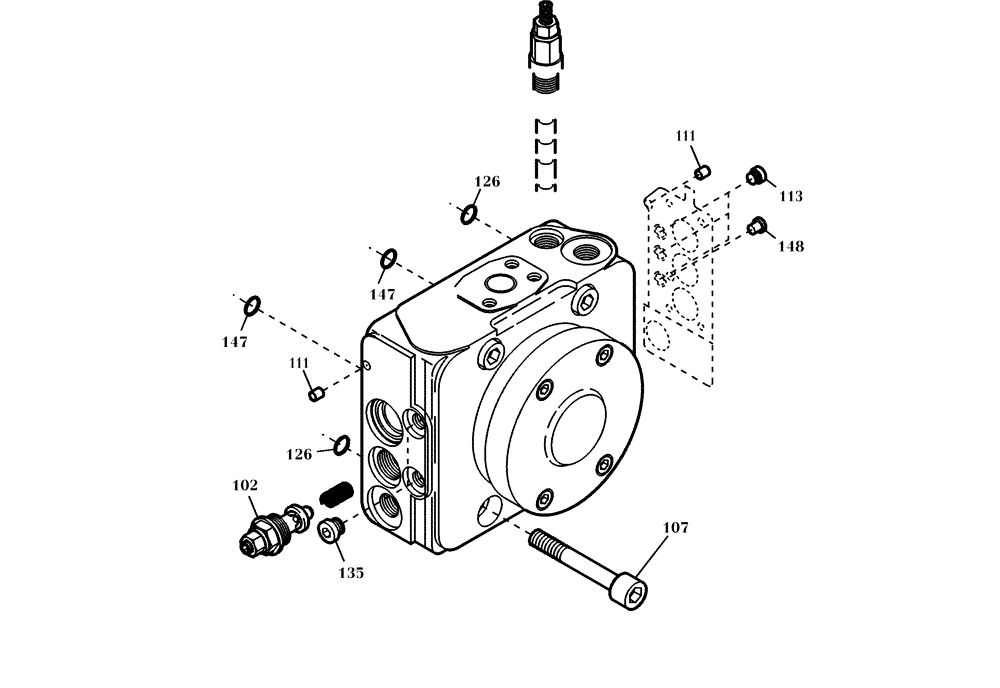

Запчасти Case 321D (22.430[001]) - PUMP ADJUSTING ASS PUMP INSTALLATION (S/N 591052-UP) No Description

1

422340A1

DISTRIBUTOR

1шт.

101

422341A1

VALVE PRESSURE RELIE

2шт.

102

422342A1

VALVE PRESSURE RELIE

1шт.

102

NS

NOT SERVICED

SEE FIGURE 23.032/002

1шт.

103

422346A1

VALVE, PRESSURE RELI

EF

1шт.

103

NS

NOT SERVICED

SEE FIGURE 23.192/001

1шт.

106

422348A1

BUSHING

1шт.

107

422349A1

SCREW

4шт.

109

422351A1

O-RING

1шт.

111

422352A1

BUSHING

2шт.

112

420702A1

PLUG

1шт.

113

420646A1

PLUG

3шт.

126

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

135

420647A1

PLUG

2шт.

143

422353A1

BUSHING

1шт.

147

422354A1

O-RING

2шт.

148

421705A1

PLUG

1шт.
