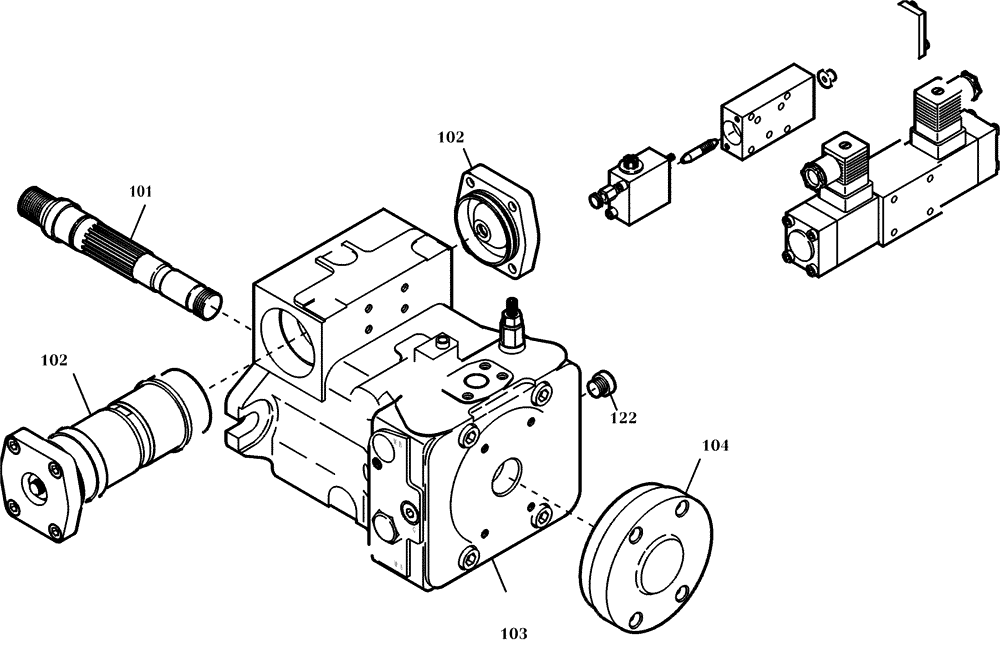

Запчасти Case 321D (22.060[001]) - AXIAL PISTON PUMP (S/N 591052-UP) No Description

1

422299A1

PUMP

1шт.

101

NS

NOT SERVICED

SEE FIGURE 16.042/001

1шт.

102

NS

NOT SERVICED

SEE FIGURE 24.150/001

1шт.

103

NS

NOT SERVICED

SEE FIGURE 22.430/001

1шт.

104

NS

NOT SERVICED

SEE FIGURE 22.052/001

1шт.

105

NS

NOT SERVICED

SEE FIGURE 23.010/001

1шт.

107

NS

NOT SERVICED

SEE FIGURE 23.110/001

1шт.

113

422368A1

PIN

2шт.

120

422369A1

PLUG

2шт.

121

420699A1

PLUG

1шт.

122

420647A1

PLUG

4шт.

127

420431A1

PLUG

1шт.

131

420701A1

PIN

2шт.

132

420702A1

PLUG

2шт.

146

422371A1

SCREW

1шт.

147

422372A1

NUT

1шт.

149

420705A1

JET

1шт.

154

420706A1

NOZZLE INJECTION

1шт.

185

422373A1

CONTROL BLOCK

1шт.

202

421775A1

SPOOL

1шт.

203

420709A1

BELLEVILLE SPRING

2шт.

204

420710A1

SPRING

1шт.
