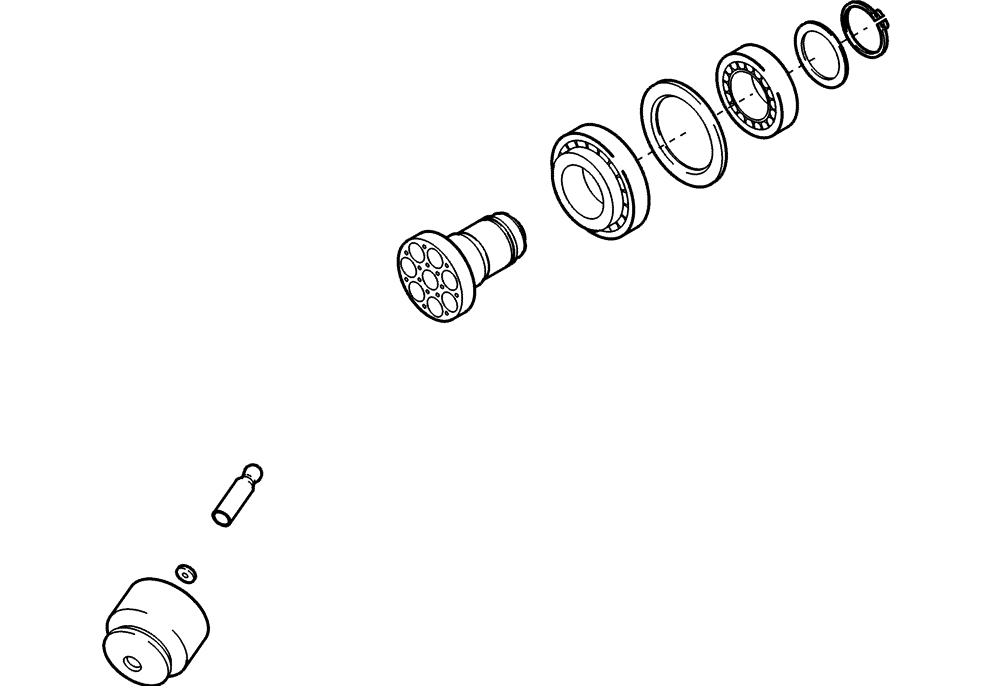

Запчасти Case 321D (22.123[2812159001]) - DRIVE DEVICE HYDRAULIC MOTOR STANDARD (35) - HYDRAULIC SYSTEMS

1

1471536

KIT

Drive Device, Replaces 422150A1

1шт.

101

1481979

ROTOR

Drive Device, Replaces 422151A1

1шт.

102

1481969

SHAFT

Replaces 422152A1

1шт.

103

1481970

SHIM

Replaces 422153A1

1шт.

106

1481971

RING

Replaces 422154A1

1шт.

107

2973354

CIRCLIP

471-65X2,5

1шт.

110

1416069

TAPERED BEARING

TAP. 720-331 13, Replaces 422155A1

1шт.

111

1416070

TAPERED BEARING

TAP. 720-331 13, Replaces 422156A1

1шт.

206

1471540

WASHER

Replaces 422158A1

1шт.

207

1471541

SPRING

Replaces 422159A1

1шт.

211

1464758

PLATE

Realse, Replaces 422160A1

1шт.

212

1471543

SCREW,Fil Hd, M5 x 16mm, Cl 10.9

FILLIST.HEAD, Replaces 420410A1

14шт.

302

1471542

SEALING RING

Replaces 422161A1

2шт.
