(02.212[2988821000]) - REAR AXLE FAST GEAR SELF-LOCKING

Запчасти Case 321D (02.212[2988821000]) - REAR AXLE FAST GEAR SELF-LOCKING (27) - REAR AXLE SYSTEM

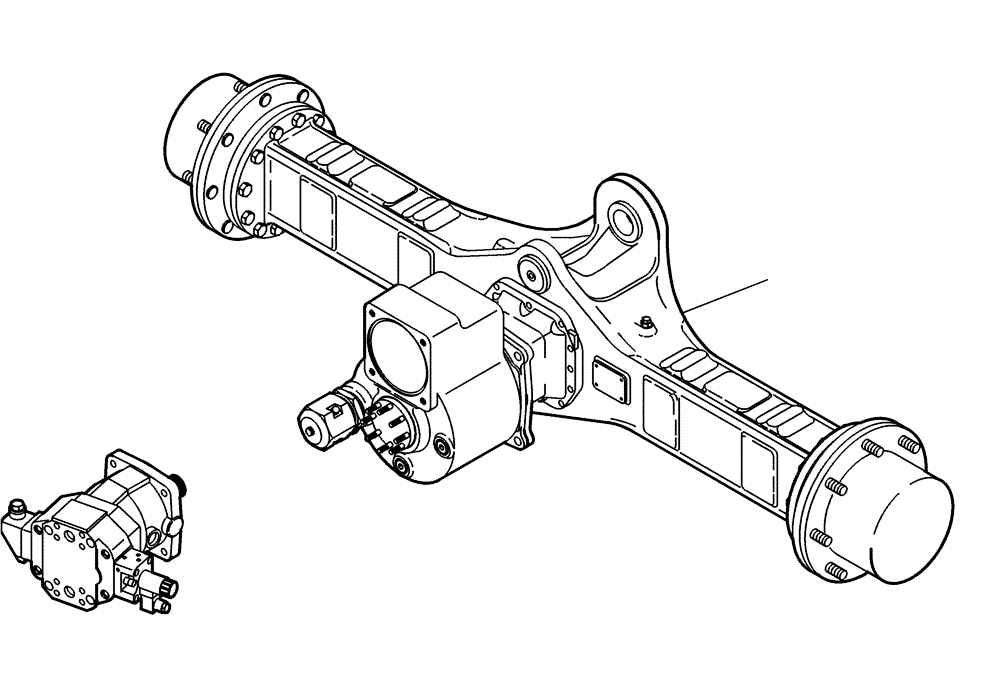

Схема запчастей Case 321D - (02.212[2988821000]) - REAR AXLE FAST GEAR SELF-LOCKING (27) - REAR AXLE SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

Rear Axle Fast Gear Self-Locking (4552451), See Fig 02.213

1шт.

2

2813671

HYDRAULIC MOTOR

See Fig 22.121

1шт.

3

2978362

O-RING

134 x 3 mm

1шт.

4

1558713

SCREW,Hex Skt, M12 x 40mm, Cl 8.8

Replaces 864-12040

4шт.

Выбрано товаров: 4
