(02.025[2988915000]) - REAR AXLE MOUNTING PARTS SELF-LOCKING

Запчасти Case 321D (02.025[2988915000]) - REAR AXLE MOUNTING PARTS SELF-LOCKING (27) - REAR AXLE SYSTEM

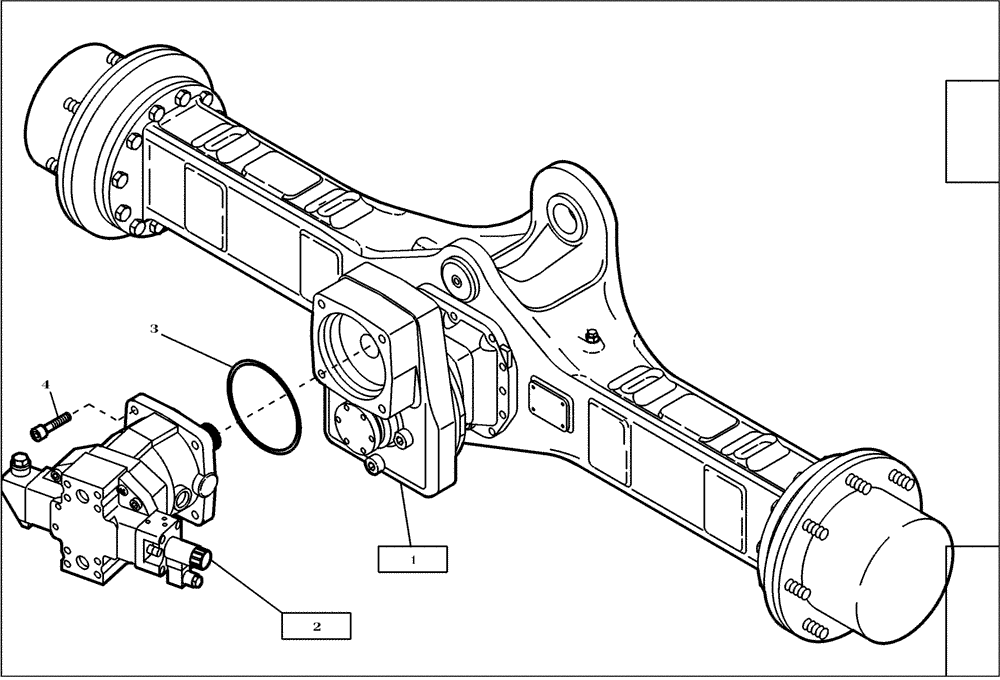

Схема запчастей Case 321D - (02.025[2988915000]) - REAR AXLE MOUNTING PARTS SELF-LOCKING (27) - REAR AXLE SYSTEM
3
4
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

Rear Axles Self-Locking (4552442),See Fig 02.026

1шт.

2

2813654

HYDRAULIC MOTOR

See Fig 22.120

1шт.

3

12177

O-RING,160mm ID x 3mm Width

160 x 3-NB80, Replaces 422171A1

1шт.

4

1537858

SCREW,Cyl Hd, M16 x 65mm, Cl 8.8

M16 x 65, 8.8

4шт.

Выбрано товаров: 4
