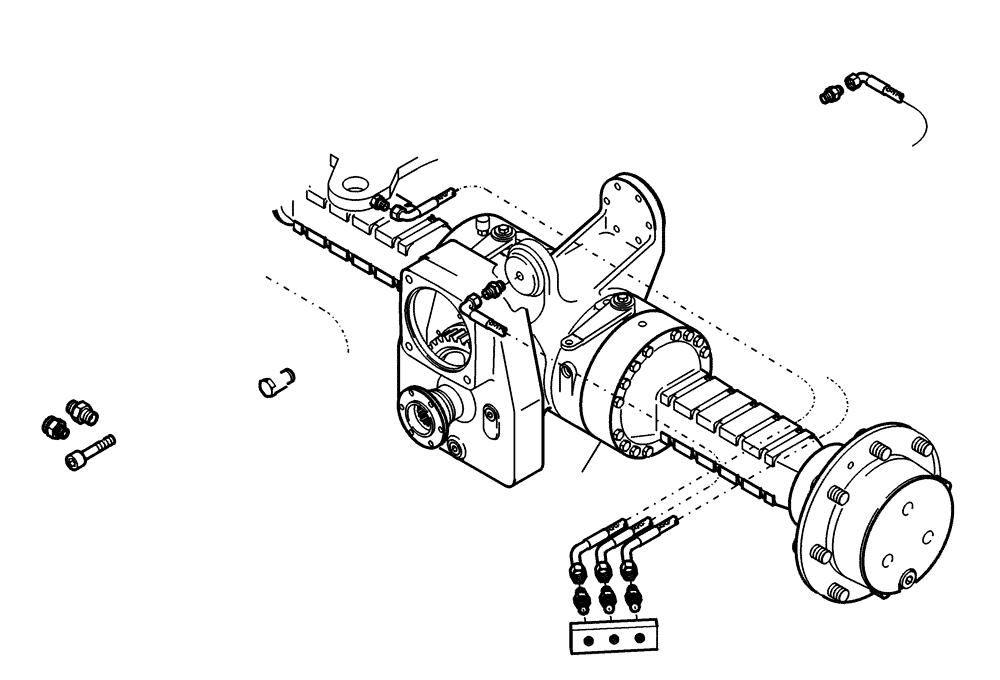

Запчасти Case 221D (02.020[002]) - REAR AXLE INSTALLATION STANDARD (S/N 581101-UP) (27) - REAR AXLE SYSTEM

1

NS

NOT SERVICED

SEE FIGURE 02.020/003

1шт.

11

420381A1

HYD CONNECTOR

1шт.

17

420466A1

PLUG

1шт.

18

420467A1

PLUG

1шт.

19

420468A1

TEE

1шт.

20

420469A1

ELBOW

2шт.

21

420470A1

HOSE

1шт.

22

420471A1

HYDRAULIC HOSE

1шт.

24

420473A1

PLUG

1шт.

25

420474A1

HYDRAULIC HOSE

1шт.

30

420477A1

HYD CONNECTOR

1шт.

31

420267A1

HYD CONNECTOR

2шт.
