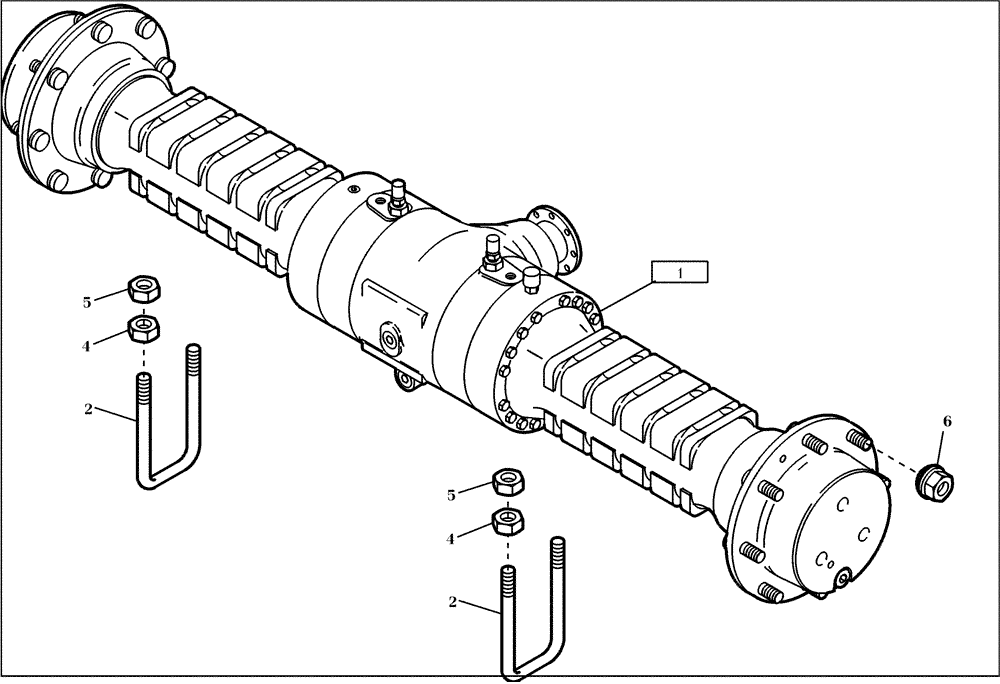

Запчасти Case 221D (02.110[001]) - FRONT AXLE FAST GEAR (OPTION) (S/N 581101-UP) (25) - FRONT AXLE SYSTEM

1

NS

NOT SERVICED

SEE FIGURE 02.111/001

1шт.

2

2813721

BOLT

2шт.

4

829-1424

NUT,M24, Cl 10

4шт.

5

424287A1

LOCK NUT

4шт.

6

420328A1

WHEEL NUT

16шт.

6

424242A1

CAP

16шт.
