(16.610[002]) - DIFFERENTIAL SELF-LOCKING (OPTION) (S/N 581101-UP)

Запчасти Case 221D (16.610[002]) - DIFFERENTIAL SELF-LOCKING (OPTION) (S/N 581101-UP) (23) - FOUR WHEEL DRIVE SYSTEM

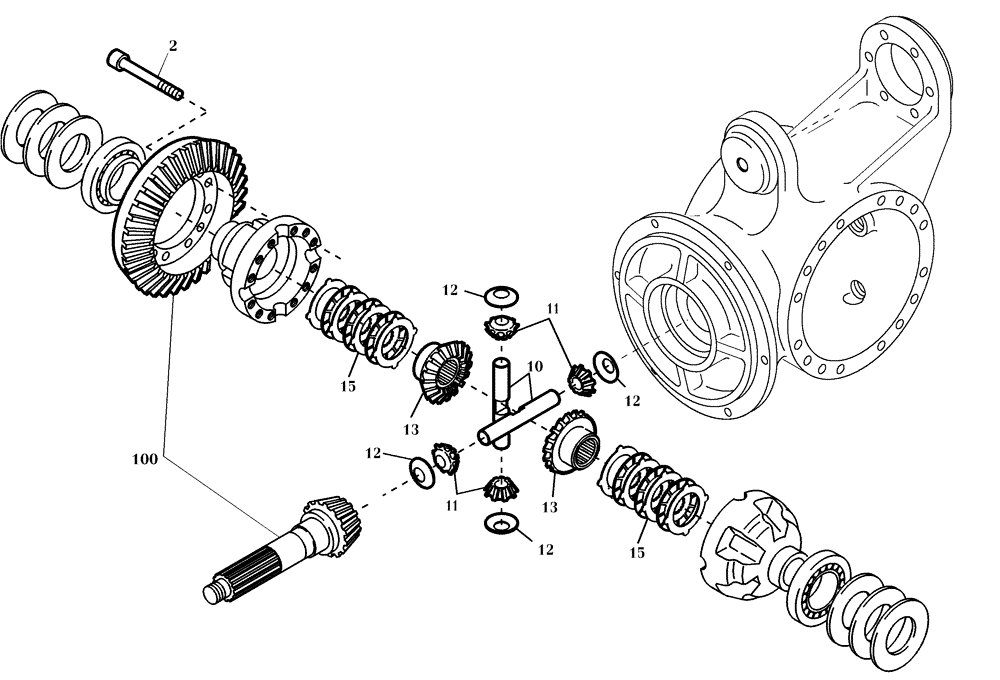

Схема запчастей Case 221D - (16.610[002]) - DIFFERENTIAL SELF-LOCKING (OPTION) (S/N 581101-UP) (23) - FOUR WHEEL DRIVE SYSTEM
12
10
11
12
2
12
100
12
15
13
13
11
15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

421878A1

SET OF PINIONS

1шт.

2

420293A1

SCREW

12шт.

10

420295A1

PINION CARRIER

2шт.

11

420296A1

PLANETARY GEAR

4шт.

12

420297A1

BELLEVILLE WASHER

4шт.

13

420298A1

GEAR, BEVEL

BEVEL GEAR

2шт.

15

420299A1

SET

2шт.

100

421669A1

SET OF PINIONS

1шт.
