(02.100[001]) - AXLES FAST GEAR SELF-LOCKING (OPTION) (S/N 581101-UP)

Запчасти Case 221D (02.100[001]) - AXLES FAST GEAR SELF-LOCKING (OPTION) (S/N 581101-UP) (23) - FOUR WHEEL DRIVE SYSTEM

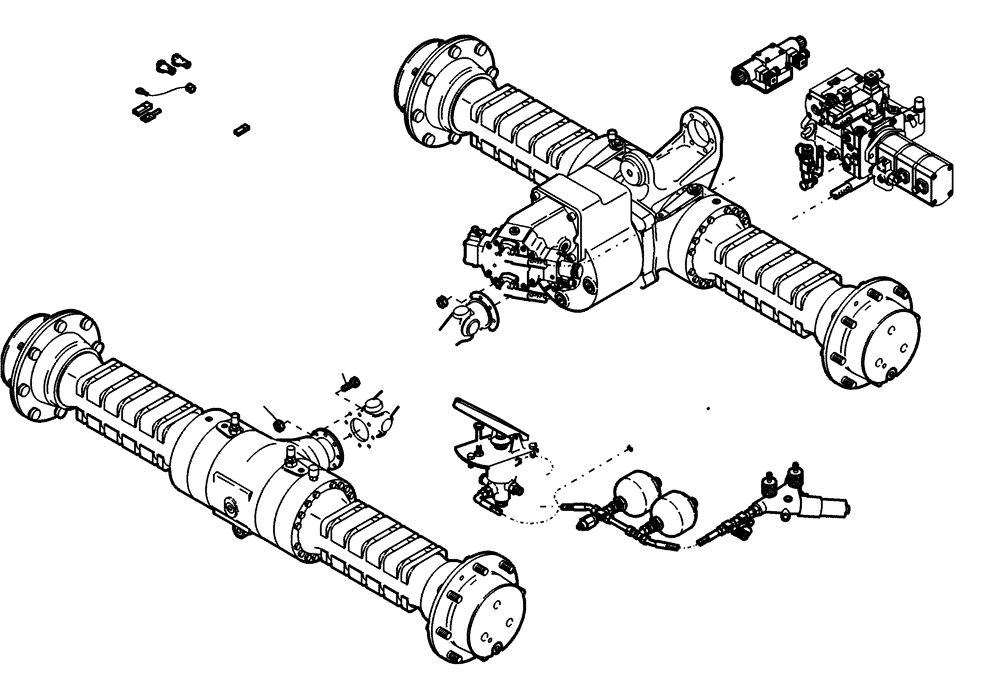

Схема запчастей Case 221D - (02.100[001]) - AXLES FAST GEAR SELF-LOCKING (OPTION) (S/N 581101-UP) (23) - FOUR WHEEL DRIVE SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

NS

NOT SERVICED

SEE FIGURE 02.110/001

1шт.

2

NS

NOT SERVICED

SEE FIGURE 02.210/002

1шт.

3

424067A1

PTO SHAFT

1шт.

4

NS

NOT SERVICED

SEE FIGURE 20.010/002

1шт.

5

NS

NOT SERVICED

SEE FIGURE 20.010/003

1шт.

10

NS

NOT SERVICED

SEE FIGURE 32.143/002

1шт.

106

420480A1

NUT

16шт.

103

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

8шт.
