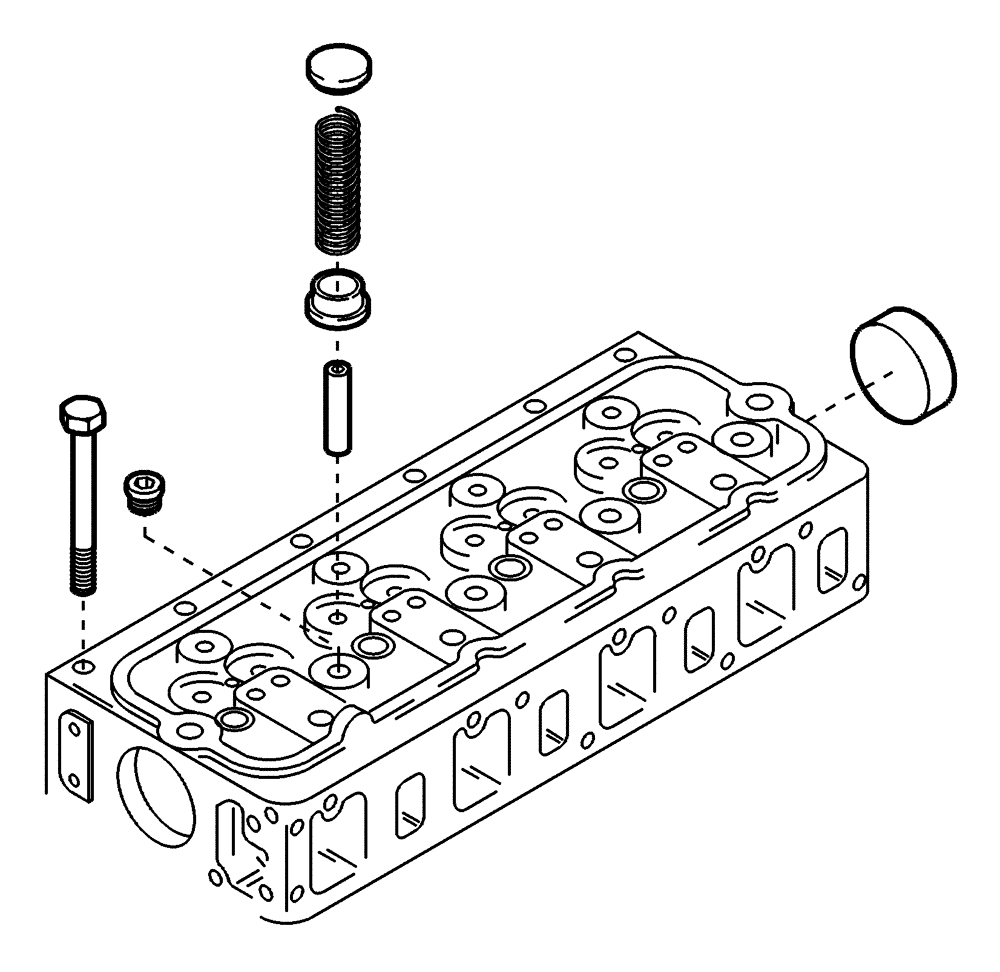

Запчасти Case 221D (95.008[001]) - CYLINDER HEAD (S/N 581101-UP) (10) - ENGINE

1

286140A1

HEAD (CYLINDER)

1шт.

4

285215A1

GUIDE

4шт.

5

420498A1

SEALING RING

4шт.

6

285217A1

BUSHING

4шт.

7

285215A1

GUIDE

4шт.

8

420498A1

SEALING RING

4шт.

9

285218A1

BUSHING

4шт.

10

218267A1

PLUG

2шт.

11

217-4

ADAPTER,3/8"-18 Fem NPTF x 3/8"-18 NPTF Male

4шт.

12

218264A1

PLUG

1шт.

13

285219A1

VALVE, ENG EXHAUST,

VALVE EXHAUST

4шт.

14

285220A1

SPRING

8шт.

15

285221A1

CUPEL

8шт.

16

285222A1

BUCKET TOOTH KEY

16шт.

17

285223A1

VALVE,ENGINE,INLET,S

VALVE INTAKE

4шт.

18

285220A1

SPRING

4шт.

19

285221A1

CUPEL

4шт.

20

285222A1

BUCKET TOOTH KEY

8шт.

21

285224A1

SCREW

14шт.

22

285225A1

PLUG

4шт.

23

285226A1

CYLINDER HEAD GASKET

1шт.
