(36.520[001]) - COVER INSTALLATION V-BELT (S/N 581101-UP)

Запчасти Case 221D (36.520[001]) - COVER INSTALLATION V-BELT (S/N 581101-UP) (90) - PLATFORM, CAB, BODYWORK AND DECALS

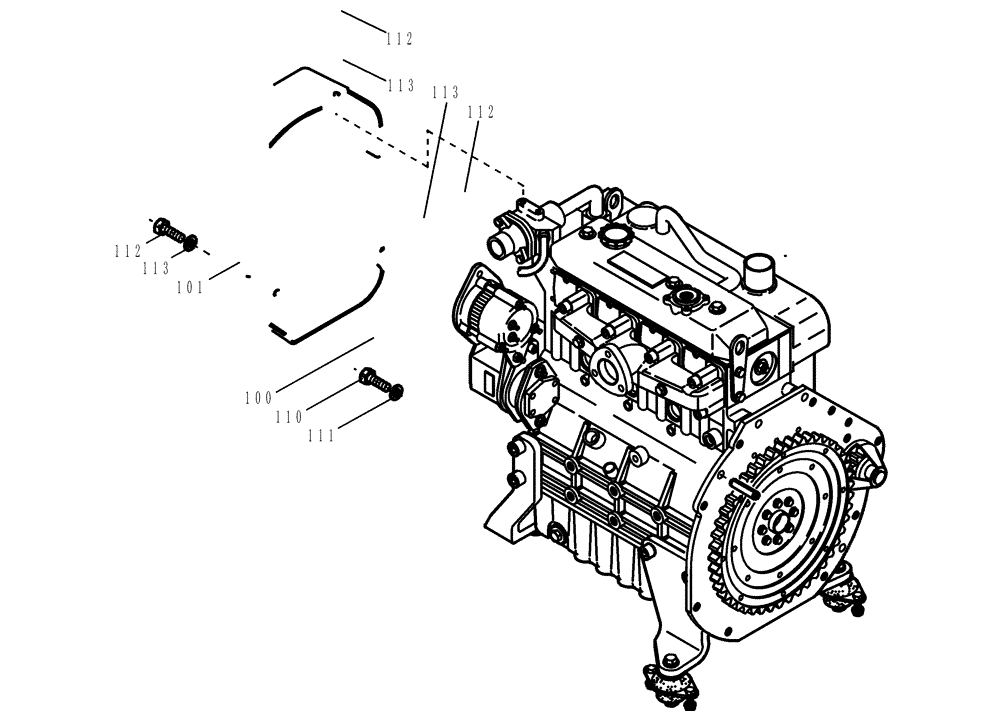

Схема запчастей Case 221D - (36.520[001]) - COVER INSTALLATION V-BELT (S/N 581101-UP) (90) - PLATFORM, CAB, BODYWORK AND DECALS
112
110
101
113
112
111
100
112
113
113
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

100

424134A1

BRACKET

1шт.

101

424135A1

COVER

1шт.

110

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

2шт.

111

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

2шт.

112

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

3шт.

113

420222A1

WASHER

3шт.

Выбрано товаров: 6
