(36.020[002]) - ENGINE HOOD INSTALLATION (S/N 581101-UP)

Запчасти Case 221D (36.020[002]) - ENGINE HOOD INSTALLATION (S/N 581101-UP) (90) - PLATFORM, CAB, BODYWORK AND DECALS

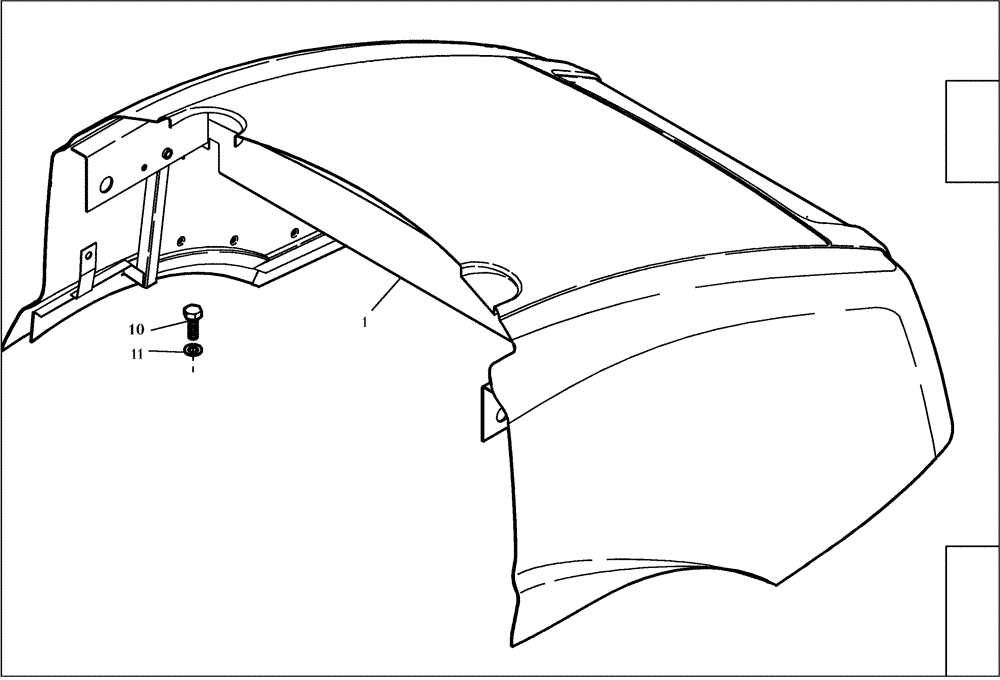

Схема запчастей Case 221D - (36.020[002]) - ENGINE HOOD INSTALLATION (S/N 581101-UP) (90) - PLATFORM, CAB, BODYWORK AND DECALS
11
1
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

NS

NOT SERVICED

SEE FIGURE 36.020/001

1шт.

10

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

6шт.

11

905424R1

WASHER,M10.5 x 25 x4

6шт.
