(34.500[001]) - OPERATORS SEAT INSTALLATION (S/N 581101-UP)

Запчасти Case 221D (34.500[001]) - OPERATORS SEAT INSTALLATION (S/N 581101-UP) (90) - PLATFORM, CAB, BODYWORK AND DECALS

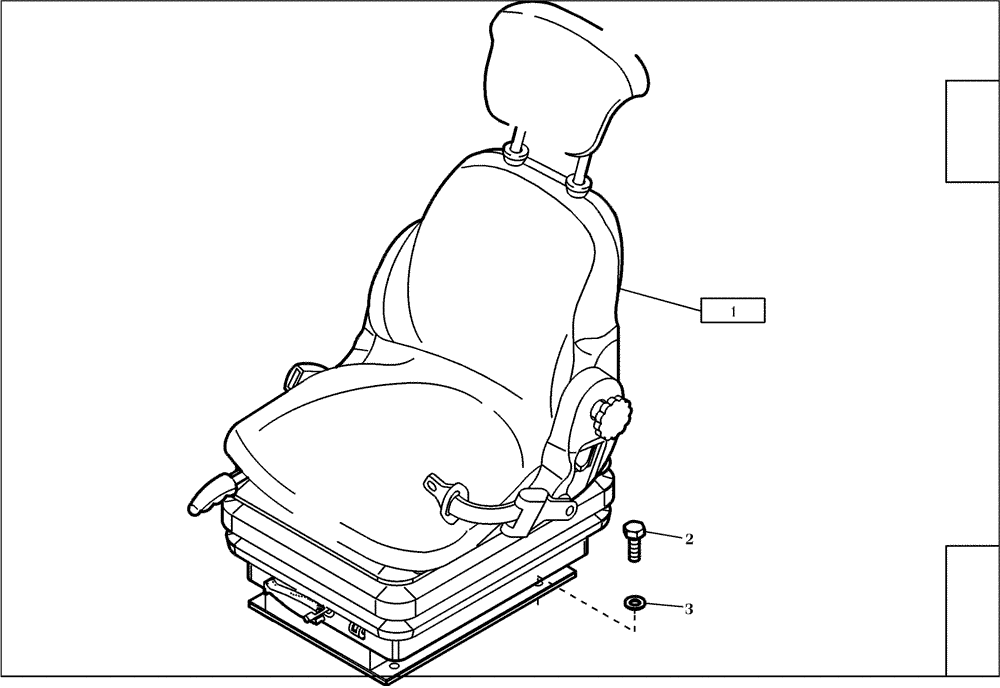

Схема запчастей Case 221D - (34.500[001]) - OPERATORS SEAT INSTALLATION (S/N 581101-UP) (90) - PLATFORM, CAB, BODYWORK AND DECALS
1
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

420800A1

SEAT ASSY.

1шт.

1

NS

NOT SERVICED

SEE FIGURE 34.502/001

1шт.

2

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

3

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

4шт.
